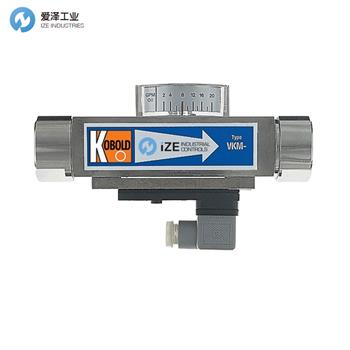

德國KOBOLD流量計VKM系列VKM3106R0R150B

The KOBOLD flowmeters and switches model VKM have a spring-loaded float, which slides within a cylindrical measuring tube and has an integral orifice which is believed to be unique. This and other design features means that it has for the first time become possible to create a flowmeter and switch which fully compensates for viscosity and to a large extent for density even with very low flows.

The float of these patented devices contains a permanent magnet which actuates a potential free bistable reed contact mounted outside the flow thus ensuring her-metic separation between the medium and the electrical contact system. The contact is embedded within a height-adjustable plastic housing to prevent damage to the contacts by mechanical action or aggressive atmospheres.

As the medium enters the instrument the float rises. Once its magnetic field reaches the contact tips of the reed switch the contact closes. As the flow increases the float rises further until it reaches its stop. This prevents the float from going beyond the contact range of the magnetic operating tube, that is, the contact remains closed thus ensuring bistable switching.

0.01 - 0.07 ... 8 - 80 l/min liquid

1 - 540 mm2/s viscosity

連接方式Connection: G ? ...1, ? ...1" NPT female thread

材質Material: brass, stainless steel

最大壓力pmax: 250 (brass), 350 bar (stainless steel)

最高溫度tmax: 100°C

輸出Output: max. 2x contact, 1x analogue

電源Power supply: 24 VAC/DC , 24 VDC ±20 %, max. 250 VAC

電氣接口Electrical connection: plug DIN EN 175301-803, cable

精確度Accuracy: ±4 % of full scale

選項Option: block valve BVB

標準Approval: cCSAus, ATEX

德國KOBOLD流量計VKM系列VKM3106R0R150B

愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：

KOBOLD流量計VKM3106R0R150B

KOBOLD流量計VKM-3101

KOBOLD流量計VKM-3102

KOBOLD流量計VKM-3103

KOBOLD流量計VKM-3104

KOBOLD流量計VKM-3105

KOBOLD流量計VKM-3106

KOBOLD流量計VKM-3107

KOBOLD流量計VKM-3108

KOBOLD流量計VKM-3109

KOBOLD流量計VKM-3110

KOBOLD流量計VKM-3111

KOBOLD流量計VKM-3112

愛澤工業專業提供德國KOBOLD流量計VKM系列VKM3106R0R150B，德國KOBOLD全系列產品，KOBOLD流量計，KOBOLD壓力開關，KOBOLD壓力傳感器，KOBOLD壓力表等等。

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。

如果有任何關于德國KOBOLD流量計VKM系列VKM3106R0R150B的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。

有關德國KOBOLD更詳細的信息或者購買德國KOBOLD相關產品，請聯系愛澤工業。
