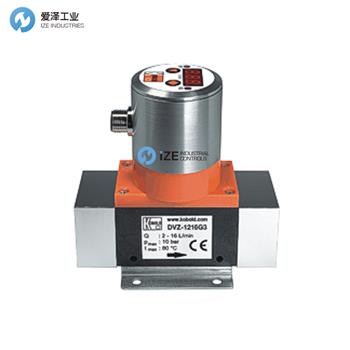

德國KOBOLD流量計DVZ系列DVZ-Y17348/16S2

KOBOLD DVZ Series vortex flowmeters with no moving parts are the perfect solution for applications where reliability and low cost are desired.

The DVZ Series vortex flowmeter senses the flow rate of low-viscosity liquids using the vortex-shedding principle. A small obstruction (bluff body) is placed in the flow path. As fluid flows across the bluff body, small, low-pressure areas (vortices) are created just behind the bluff body.

The position of the vortices alternate to either side of the bluff body in a uniform pattern. The frequency of the vortex shift is directly proportional to flow rate. This shift in the vortices is detected by a very sensitive pressure sensor and is processed as a scaled flow rate signal.

The DVZ Series vortex flowmeter has no moving parts and is thus very reliable. It is available with a PPS body and your choice of either nickel-plated brass or 316 stainless steel fittings.

The bluff body is available in either the standard PPS or optional ceramic material, which has excellent long-term wear characteristics even under harsh operating conditions.

Available outputs for the KOBOLD DVZ Series vortex flowmeter include pulse frequency, 4-20 mA, adjustable relay, and compact electronics with LED digital flow rate display, 4-20 mA output and adjustable transistor switch options.

Product Specifications 產品參數

范圍Range：0.13...1.2 GPM to 2.7...26 GPM

連接尺寸Fittings：?"...1" NPT & G?...G1

接口材質Fitting Material：Ni-Plated Brass, SS

最大壓力Max. Pressure：145 PSIG / 290 PSIG

介質最高溫度Max. Media Temperature：176 °F

精確度Accuracy：±2.5% of Full Scale

Product Features產品特性

Vortex Shedding Technology with No Moving Parts

PPS Body with Ni-Plated Brass or SS Fittings

Frequency, Current or Switch Outputs Available

Fixed or Rotatable Connections

Economically Priced

德國KOBOLD流量計DVZ系列DVZ-Y17348/16S2

愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：

KOBOLD流量計DVZ-Y17348/16S2

KOBOLD流量計DVZ-S300

KOBOLD流量計DVZ-S30D

KOBOLD流量計DVZ-F300

KOBOLD流量計DVZ-L3×3

KOBOLD流量計DVZ-L443

KOBOLD流量計DVZ-C30X

KOBOLD流量計DVZ-C34

KOBOLD流量計DVZ-1

KOBOLD流量計DVZ-2

KOBOLD流量計DVZ-3

KOBOLD流量計DVZ-4

愛澤工業專業提供德國KOBOLD流量計DVZ系列DVZ-Y17348/16S2，德國KOBOLD全系列產品，KOBOLD流量計，KOBOLD壓力開關，KOBOLD壓力傳感器，KOBOLD壓力表等等。

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。

如果有任何關于德國KOBOLD流量計DVZ系列DVZ-Y17348/16S2的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。

有關德國KOBOLD更詳細的信息或者購買德國KOBOLD相關產品，請聯系愛澤工業。
