MWM泵I4系列技術參數
DATA SHEET | |
Delivery volume: | 13 cm /cycle |
Actuating pressure p (air) | 4÷7 bar |
Compression ratio: | P /P = 4,5/1 |
Operating pressure p (oil) | max. 30 bar |
Residual pressure (after decompression): | 0,5 ÷ 1 bar |
Operating time lenght: | > 2 sec |
Maximum duration of cycle | 4 min |
Temperature range: | -10 ÷ +60 °C |
Lubricant viscosity: | oil (without aggressive additives) |
1000 cSt at room temperature | |
Tank capacity: | 3 l |
Materials: | Tank transparent polyammide |

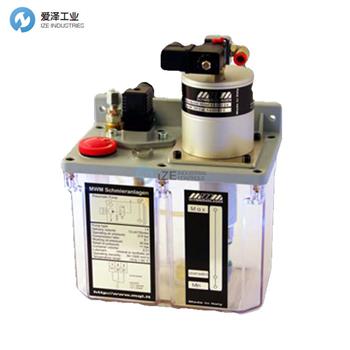

MWM泵I4系列介紹
單線系統集中潤滑設備和 MWM 氣油潤滑裝置中的油泵。
泵必須通過電磁閥由壓縮空氣驅動。該泵與填充篩、吸濾器、雙觸點液位開關（最低液位和警告液位）和減壓閥一起提供。
可提供輸送管路上的 3μm 濾油器（應要求提供）。
Oil pump in centralized lubrication equipments according to the single line system and in MWM Air-Oil Lubrication Units.
The pump must be operated by compressed air through a solenoid valve. The pump is supplied together with filling sieve, suction filter, double contact levelswitch (minimum level and warning level) and decompression valve.
3μm oil filter on the delivery line is available (on request).
MWM泵其他常用型號：
MWM SCHMIERANLAGEN GEC-A
MWM GEI-B
MWM GFX-A
MWM GFX-C
MWM I211210
MWM I411310
