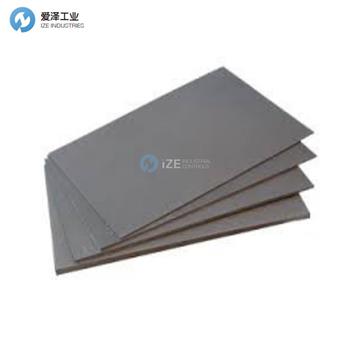

LAIRD ECCOSORB吸收材料AN-72產品參數
Specification | |
Applications | Free space Reflectivity reduction, test boxes |
Flame Rating | UL94-HBF |
Frequency Range | > 600 MHz |
Industries | Telecom, Test and Measurement, Other |
LAIRD ECCOSORB吸收材料AN-72產品介紹
LAIRD ECCOSORB AN是一系列輕巧，自由空間的多層寬帶微波吸收器。產品由經過碳處理的聚氨酯泡沫制成，并以層壓結構組裝以產生可控的電導率梯度。該系列的每個產品都有其自己的低端截止頻率，這些截止頻率構成了基于工作頻率進行選擇的基礎。使用正確的LAIRD ECCOSORB AN吸收器，對于正常入射能量，反射率降低至少17dB。
如果吸收器會與水，燃料，液壓油接觸或在室外使用，則建議使用LAIRD ECCOSORB ANW。
使用的示例是雷達天線機艙，消聲罩，雷達范圍內的天線或目標測試架以及內部或外部喇叭天線。LAIRD ECCOSORB AN還可以用于對天線方向圖進行所需的修改，例如減少旁瓣和后瓣。LAIRD ECCOSORB AN對線性，橢圓或圓形極化同樣有效，并且對入射角高達70度相對不敏感。
LAIRD ECCOSORB? AN is a series of lightweight,free space, multi-layer, broadband microwave absorbers. Products are made from polyurethane foam that is treated with carbon and assembled in a laminate construction to generate a controlled conductivity gradient. Each product in the series has it’s own low end cut-off frequency that forms the basis of selection based on operating frequency. Reflectivity reduction is at least 17 dB down for normal incident energy with the correct choice of LAIRD ECCOSORB? AN absorber.
In situations where the absorber will come in contact with water, fuel, hydraulic fluids, or will be used outdoors, LAIRD ECCOSORB ANW is recommended.
Examples for use are radar antenna nacelles, anechoic enclosures, antenna or target test mounts in radar ranges, and inside or outside horn antennas. LAIRD ECCOSORB AN can also be used to produce desired modifications in antenna patterns such as the reduction of side-lobes and back-lobes. LAIRD ECCOSORB AN is equally effective against linear, elliptical, or circular polarization, and relatively insensitive to incidence angles out to 70 degrees.
LAIRD ECCOSORB吸收材料AN系列其他常見型號：
LAIRD ECCOSORB AN-72
LAIRD ECCOSORB AN-73
LAIRD ECCOSORB AN-74
LAIRD ECCOSORB AN-75
LAIRD ECCOSORB AN-77
LAIRD ECCOSORB AN-79
LAIRD ECCOSORB Flexible Foam Sheet Broadband Microwave Absorber NEW + ORIGINAL+ ONE YEAR WARRANTY
