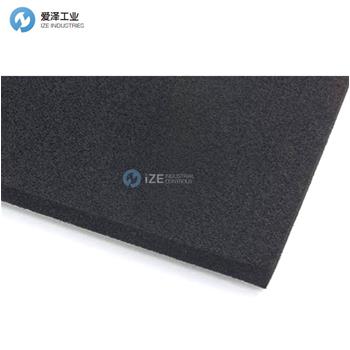

ECCOSORB吸收材料QR-13AF產品參數
Technical Specification | |
Typical Properties | |
Color | Black |
Function | Cavity resonance |
Operating Temperature Max (Celsius) | 93 |
Operating Temperature Min (Celsius) | -70 |
Resin | PU |
Shelf Life | Minimum 720 Days from Date of Shipment |
Type | Dielectric Foam absorber |
Electromagnetic Properties | |
Insertion loss | >10 dB at 3 Ghz |
Dimensions | |
Thickness Max (mm) | 6.40 |
Thickness Min (mm) | 3.20 |
Compliance | |
REACH | Yes |
UL Flammability Rating | UL94 HF-1 |
Options | |
Option Availability - PSA | Yes |
Option Availability - on drawing | Yes |
ECCOSORB吸收材料QR-13AF產品介紹
Similar in design yet stiffer in nature due to the flame-retardants used, ECCOSORB? QR-13AF will generally not dust or flake off. ECCOSORB? QR-13AF is designed for the suppression of cavity resonances in shielded high-frequency modules and the absorption of parasitic radiation emanating from high speed electronic circuits. It can be used to line the interior of a cavity to lower its Q in RF amplifiers, cabinets containing microwave devices or computer housings requiring a high UL rated absorber. It can also be used for the isolation of antennas by insertion loss.
Features and Benefits
Flexible
High loss, low density
Lightweight
Antimony free
ULHF1
由于使用了阻燃劑，ECCOSORB QR-13AF的設計相似但性質更硬，通常不會產生灰塵或剝落。ECCOSORB QR-13AF設計用于抑制屏蔽高頻模塊中的腔諧振和吸收高速電子電路發出的寄生輻射。它可用于在腔體內部排列以降低射頻放大器、包含微波設備的機柜或需要高 UL 額定吸收器的計算機外殼中的 Q。 它還可用于通過插入損耗隔離天線。
特點和優勢
靈活的
高損耗、低密度
輕的
無銻
超高頻1
ECCOSORB材料QR系列其他常見型號：
ECCOSORB 78135164 QR-13AF .25X24X24
ECCOSORB 78135166 QR-13-AF 1/8IN SA SHEET NA
ECCOSORB 78135167 QR-13-AF 1/4IN SA SHEET NA
ECCOSORB QR13-AF 610mm x 610mm x 3,2mm
