PERMA-PURE干燥管MD系列技術參數
SPECIFICATIONS | |
Nafion? Tubing Outer Diameter Options | 0.050" (MD-050), 0.070" (MD-070), 0.110" (MD-110) |
Max. Flow Rate | 0.2 lpm (MD-050), 4 lpm (MD-070), 4 lpm (MD-110) |
Housing Materials Available | Polypropylene, Fluorocarbon, or Stainless Steel |
Max. Operating Temperatures | 80 °C for polypropylene housing, 100 °C for fluorocarbon or stainless steel housing |
Sample Gas Port – End Fitting Options | Port 1/16" Compression (MD-050, Stainless Steel Only) |
Purge Gas Port – End Fitting Size | Port 1/8" Compression (MD-050) |
Purge Gas Recommendations | Purge gas must be drier than sample gas |

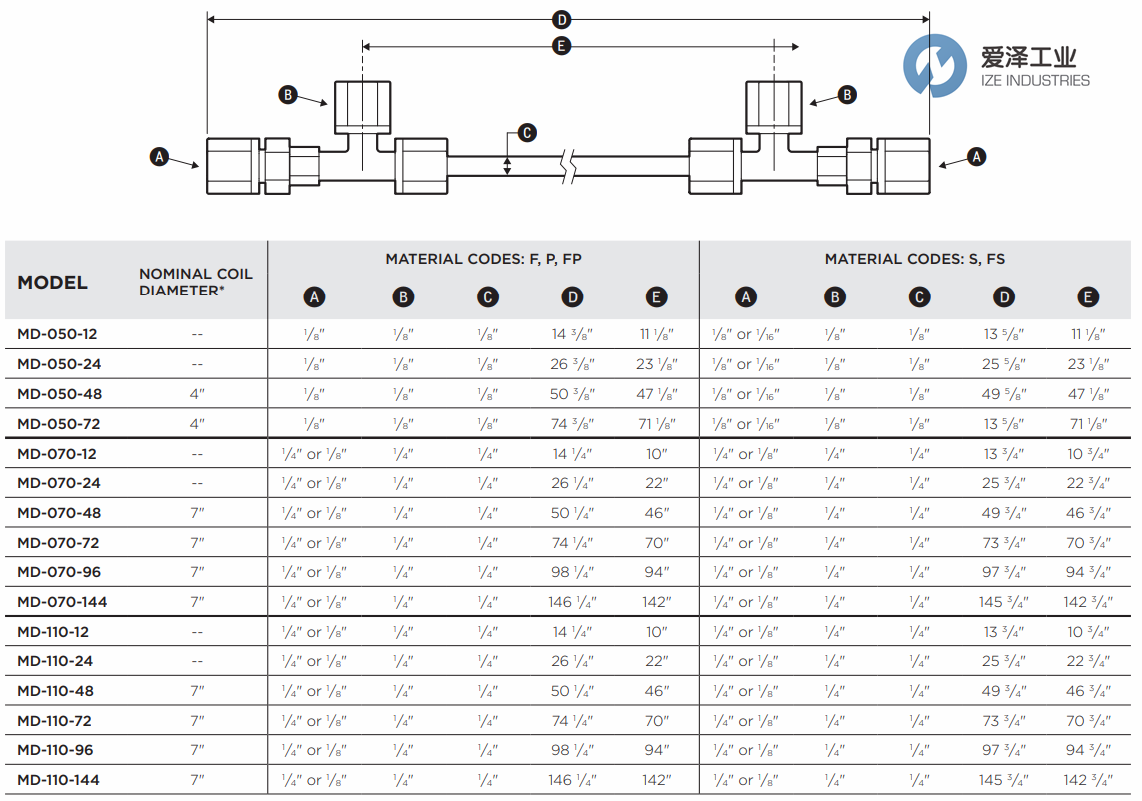

Coiled Configurations | Certain models are shipped coiled based on length. See page 4 for nominal diameters. Contact us for custom coiled solutions. |
PERMA-PURE干燥管MD系列介紹
PERMA-PURE氣體干燥器由Nafion管提供動力，有選擇地去除氣體樣品中的水分。這種對水蒸汽的選擇性使我們的干燥器能夠去除比其他氣體干燥解決方案更多的水分，同時將分析物保留在氣體樣品中。
單管干燥器系列(MD-系列)氣體干燥器包含單個Nafion管。MD系列可以將氣體干燥至低至 –40 ℃ 露點的濕度水平，非常適合流速高達4 lpm的應用。
Powered by Nafion tubing, Perma Pure gas dryers selectively remove water from a gas sample. This selectivity for water vapor allows our dryers to remove more moisture than other gas drying solutions, while keeping analytes in the gas sample.
Monotube Dryer Series (MD-Series) gas dryers contain a single Nafion tube. The MD-Series can dry a gas to humidity levels as low as –40 °C dew point and is ideal for applications with flow rates up to 4 lpm.
PERMA-PURE干燥管MD系列選型
PERMA-PURE干燥管MD系列其他常用型號：
PERMA-PURE MD-050-12
PERMA-PURE MD-050-24
PERMA-PURE MD-050-48
PERMA-PURE MD-050-72
PERMA-PURE MD-070-12
PERMA-PURE MD-070-24
PERMA-PURE MD-070-48
PERMA-PURE MD-070-72
PERMA-PURE MD-070-96
PERMA-PURE MD-070-144
PERMA-PURE MD-110-12
PERMA-PURE MD-110-24
PERMA-PURE MD-110-48
PERMA-PURE MD-110-72
PERMA-PURE MD-110-96
PERMA-PURE MD-110-144
PERMA-PURE MD110-48P-4
PERMA-PURE Drying tube NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PERMA-PURE干燥管MD110-48P-4的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PERMA-PURE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
PERMA-PURE干燥管MD系列MD110-48P-4介紹及選型
