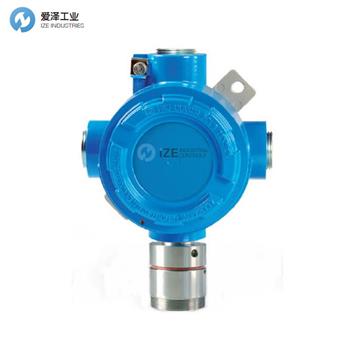

SENSITRON氣體探測器SMART3G系列

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌：
型號：S2097IB
SENSITRON異丁烷氣體探測器S2097IB
預估貨期：
提交詢價
關  鍵  詞：SENSITRON異丁烷氣體探測器SENSITRONS2097IBS2156GP
相似產品：
是否有問題？聯系我們工作人員
  郵件聯系
技術資料：SENSITRON Gas Detectors S2097IB

SENSITRON 異丁烷氣體探測器S系列規格描述

Technical specifications


Sensing element

Pellistor sensors for flammable gas Electrochemical cells for toxic gasIR sensors for HC, CO2, SF6, Refrigerant gases %LEL for flammable gases

Measuring range

%LEL for flammable gases
ppm for toxic gases and refrigerants
% vol for O2 and CO2

Power supply

12-24Vdc -20% +15%

Consumption at 12Vdc

90mA (medium); 130mA (max) Pellistor
50mA (medium); 70mA (max) electr.cell 90mA (medium); 130mA (max) IR

Visual indications

SMART3G-C: flickering LED SMART3G-D: 3 red LED's for Alarm yellow for Fault, green for PS

Display characteristics(SMART3G-D)

4 digits, 7.5 mm high, 7 segments

Proportional output

4-20 mA (200 ?)

Serial Output (optional)

RS 485 and proprietary protocol for addressable gas control panels

Relay outputs, with mode status LEDs (optional)

3 relays with tension free changeover contact 24V-1A (non-latching type)

Accuracy

from ±2% to ±5% FS (depending on sensor type)

Repeatability

from ±2% to ±5% FS (depending on sensor type)

Warm-up time

2 minutes

Stabilization time

60 minutes (for test/calibration)

Response time T90

From 15 to 30 sec. for Pellistor and <60 sec. for other sensor type

Storage temperature

-25°C ÷ +60°C (or limits of the sensor)

Operating temperature

-20°C ÷ +60°C (-40°C ÷+65°C or 75°C
on request) for Pellistor and IR sensors,
-20°C ÷ +50°C for cells
Always refer to the detector's label

Relative humidity

20-90% RH / 40°C (5-95% RH non-
condensing on request)

IP rating

IP65 for II 2G(D) (IP67 with: STGD/AD3 adapter and IP67 cable gland);IP55 for II3GD

Operative pressure

80-110 KPa

Max. air velocity

< 6 m/s

Weight

850÷1200 g Ex n 950÷1700 g Ex d

Dimension (approx)

Ex d L.130 H.180 D.90 mm (max)
Ex n L.106 H.180 D.65 mm (max)

Orientation

Detector must be mounted sensor head downwards

Certificates

CESI 17 ATEX 003X (ESR II 2G/2GD) CESI 16 ATEX 046X (Intrinsic Safety) CESI 02 ATEX 084 (Performance) IECEx CES 17.0011X & 17.0010X

EMC Reference Standards

EN 50270, EN 61000-6-4


愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

SENSITRON異丁烷氣體探測器S系列產品介紹

S2097IB SMART3G氣體檢測儀用于在分類區域中檢測異丁烷，2-甲基丙烷，異丁烷，三甲基甲烷，1,1-二甲基乙烷，R600a和綠凍結氣體化合物（％LEL）。

用于可燃?xì)怏w檢測的Pellistor傳感器顯示出高達100％LEL的出色輸出線性度。

SMART3G系列產品的設計旨在提供多種選擇，從而為客戶提供最佳的解決方案。

SMART3G-C專為提供工業應用的高性能產品而設計。

SMART3G探測器通過ATEX認證，適用于：

II組2G，2GD，3G和GD

SMART3G探測器通過SIL2 HW TUV認證



特點與優勢

-易于更換傳感器

-多種傳感器和可檢測氣體

-標準4-20 mA 3線輸出

-多種附件用于安裝和維護

-零跟蹤和系統自我診斷

-ATEX認證的I＆II組



S2097IB SMART3G gas detectors are employed to detect Isobutane, 2-methylpropane, i-butane, trimethylmethane, 1,1-dimethylethane, R600a, Greenfreeze Gas compounds (%LEL) in classified areas.

The Pellistor sensors employed for the flammable Gas detection show an excellent output linearity up to 100% LEL.

The SMART3G line has been designed to offer a wide range of alternatives that grant customers the best solution to their requirements.

SMART3G-C has been specifically designed to offer high performance products for industrial applications.

SMART3G detectors are ATEX certified for:

Group II 2G, 2GD, 3G & GD

SMART3G detectors are SIL2 HW TUV certified



FEATURES & BENEFITS

- Easy sensor replacement

- Wide range of sensors and detectable gases

- Standard 4-20 mA 3 wires output

- Wide range of accessories for installation and maintenance

- Zero tracking and system self diagnosis

- ATEX certified Group I & II
