DATAPAQ爐溫跟蹤儀ET3系列技術參數
Channels | 4 or 6 thermocouple options |
Measurement range | -150 to 500 °C (-238 to 932 °F) |
Thermocouple type | K (mini-plug) |
Logger accuracy | ± 0.5 °C (± 0.9 °F) |
Cold junction compensation | Accuracy guaranteed with change in logger temperature |
Resolution | ± 0.1 °C (± 0.2 °F) |
Logger operating range | 0 to 85 °C (32 to 185 °F ) with safe auto shut down |
Case | High temperature cool touch molded polycarbonate <100 °C (212 °F) |
PCB | Coated to improve moisture protection |
Sampling interval | 0.5 s to 60min |
Start trigger | Auto start/ start button /temperature trigger |
Battery use | Replaceable 9V alkaline (ANSSI/NEDA 1604A IEC6LR61) |
Battery life | Min 360 hours continuous operation – 5 s, 6 channels 25 °C (77 °F) |
Memory | 18.000 readings per channel per run (0.5 s sample interval = 2.5 hours run time). |
On board calibration data | Digital certificate |
On board logger LEDs | Logger & battery status indication |
On board logger diagnostics | Service email for logger health check |
Logger USB power | No battery discharge on reset & download |
Auto logger detection | Auto boot up when logger detected by Insight? software |
Multiple run capability | Max 3 runs separately stored in logger |
SmartPaq | Intelligent logger profile run “pass/fail” indicator |
Computer interface cable | CI1150 mini-B USB connector |
Hardwired telemetry | via USB cable |
Software compatibility | EasyTrack Insight (V8.50); EasyTrack Insight Professional (V8.50) |
Windows compatibility | 32 and 64-bit versions of Windows? XP, Vista, 7, 8, 10 |
Logger dimension (l×w×h) | 170×67×20.5mm (6.7×2.6×0.8 in) |
Replaces | EasyTrack – ET5051; EasyTrack2 – ET4041 & ET6061 |
Logger weight | ET4043 – 196 g (0.43 lbs); ET6063 – 200 g (0.44 lbs) |
DATAPAQ爐溫跟蹤儀EASYTRACK 3系列介紹
DATAPAQ EasyTrack3 是 EasyTrack 系列中新一代的爐溫跟蹤系統。 新系統建立在 EasyTrack 和 EasyTrack2 的基礎上，繼續為市場提供簡單、強大、功能強大的烤箱分析工具，供定制涂層商、OEM 運營商或涂層供應商使用。
將 DATAPAQ EasyTrack3 系統發送通過烤箱并測量產品和烤箱溫度，以確保達到正確的溫度時間，從而提供正確的熱涂層固化。
? 自動記錄儀檢測
? 更多內存
? 板載校準數據
? 遠程服務診斷工具
? 改善電池性能
? 斜坡標記
? 自動更改軟件語言

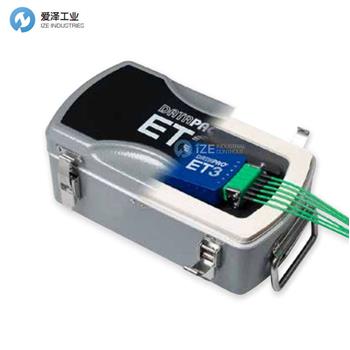

DATAPAQ EasyTrack3 is the latest generation of Oven Tracker systems in the EasyTrack family. Built on the pedigree of EasyTrack & EasyTrack2, the new system continues to provides the market with the easiest, robust, powerful oven profiling tool available to custom coaters, OEM operations or coating suppliers alike.
Send the DATAPAQ EasyTrack3 system through your oven and measure the product and oven temperature to guarantee that the correct time at temperature is achieved to give you the correct thermal coating cure.
Listening to our global EasyTrack customers’ needs, we introduce the new DATAPAQ ET3 datalogger, which offers even more choice and value.
? Auto logger detect
? More memory
? On-board calibration data
? Remote service diagnostics tool
? Improved battery performance
? Slope markers
? Auto software language change
DATAPAQ爐溫跟蹤儀EASYTRACK 3系列其他常用型號：
DATAPAQ ET4043
DATAPAQ ET6063
DATAPAQ TB0253
DATAPAQ TB0263
DATAPAQ Oven Tracker systems NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DATAPAQ爐溫跟蹤儀EASYTRACK 3 ET6063的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DATAPAQ products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
