HYPERTAC連接器LHS/LHZ系列介紹

Smiths Interconnect's LHS/LHZ Series delivers railway industry-leading performance for high reliability, specialty, float mount connections, ideal for blind mating. Hypertac? hyperboloid contact technology ensures immunity to shock and vibration and minimal contact resistance. The LHZ Series is available as specific version with high-speed Quadrax contacts.

Floating connector to ease rack plugging

Built with low fire and smoke and toxicity material for rail application

Robust for severe environment

High reliability contact technology

Smiths Interconnect的LHS/LHZ系列具有鐵路行業領先的性能，可提供高可靠性，特殊的浮動安裝連接，是盲插的理想選擇。Hypertac雙曲面接觸技術可確保不受沖擊和振動的影響，并具有最小的接觸電阻。LHZ系列具有高速Quadrax觸點的特定版本。

浮動連接器，方便機架插入

用低火，低煙和有毒材料制成，適合鐵路應用

堅固耐用，適用于惡劣環境

高可靠性接觸技術

HYPERTAC連接器LHS/LHZ系列特點

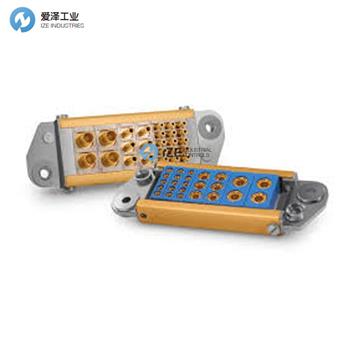

LHS/LHZ Series is a flat floating connector mixing power, signal and coaxial contacts. The connectors have been designed to meet the most demanding requirements of the rail transportation industry and is qualified to SNCF standards. They are ideal for rack & panel, cable and program applications. The LHS/LHZ connector range provides a quick and easy connection/disconnection and the float mounting compensates for mechanical misalignment up to 1.25mm during blind mating, ensuring excellent signal integrity.

The 14 units of 5.5mm pitches allow a high contact density up to 70 signal contacts. Made with the superior Hypertac? hyperboloid contact technology, these connectors offer excellent reliability, even under high levels of shock and vibration and maintain life cycle up to 500 mating cycles for a low cost of ownership.

Flat floating connector, ideal for blind mating

Mixed power, signal, coaxial and quadrax contacts

Rack/panel applications (norm XPF61-005)

Compliant with NF F 61-032 standards

High contact density, up to 70 signal contacts

LHS / LHZ系列是將電源，信號和同軸觸點混合在一起的扁平浮動連接器。連接器的設計滿足鐵路運輸行業最苛刻的要求，并符合SNCF標準。它們是機架和面板，電纜和程序應用的理想選擇。 LHS / LHZ連接器系列提供了快速簡便的連接/斷開連接，并且浮動安裝補償了盲插過程中高達1.25mm的機械偏差，從而確保了出色的信號完整性。

5.5 mm間距的14個單元允許高達70個信號觸點的高觸點密度。這些連接器采用卓越的Hypertac?雙曲面接觸技術制成，即使在高水平的沖擊和振動下也能提供出色的可靠性，并能以高達500個的配合周期維持生命周期，從而降低了擁有成本。

扁平浮動連接器，非常適合盲插

混合電源，信號，同軸和四方觸點

機架/面板應用（標準XPF61-005）

符合NF F 61-032標準

高觸點密度，多達70個信號觸點

HYPERTAC連接器LH系列其他常見型號：

HYPERTAC LH-004224012

HYPERTAC LH-004234010

HYPERTAC LH-004224014

HYPERTAC LH-004234012

HYPERTAC LH-004224018

HYPERTAC LH-004234004

HYPERTAC LH-004224002

HYPERTAC LH-004224010

HYPERTAC LH-004234008

HYPERTAC Connectors NEW + ORIGINALH+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于HYPERTAC連接器LH-004224014的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for HYPERTAC products, pLHease feeLH free to diaLH 0086-21-3100 6702/ send request emaiLH to saLHes@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.

HYPERTAC連接器LH系列 LH-004224014產品參數
