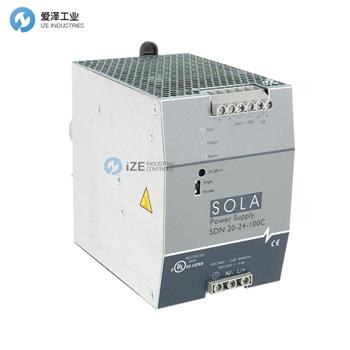

SOLAHD模塊SDN20-24-100C1規格描述
Specifications | |
UL Recognized Component, Haz. Loc. | Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nC IIC, Ex nA nC IIC |
ATEX Directive | Ex II 3 G, Ex ec nC IIC Gc |
IECEx Certified | Ex ec nC IIC Gc |
Hertz | 1-Phase: 43 - 67 Hz; 3-Phase: 50/60 Hz |
Input Voltage Range | 1-Phase: 100-240 Vac; 3-Phase: 380-480 Vac |
Operating Temperature | -40°C to +70°C |
Output Power | 120-960 W |
Output Voltage Range | 12 V (12-15 Vdc Adj.) or 24 V (23.5-28.5 Vdc Adj.) |
Overload Capability | > 30.5 but < 33 Vdc, auto recovery |
Status Indicator | 3 status LEDs (Input, Output, Alarm) |
Number of Phases | Single and Three |
Mounting | DIN TS35/7.5 or TS35/15 |
SOLAHD模塊SDN20-24-100C產品介紹
Features
Extensive international hazardous location certifications, including Class I Zone 2, ATEX, IECEx, ExEAC. Hazardous location temperature code (T-Code) rating of T4
International off-shore certifications, including ABS and DNV-GL
PowerBoost ? enables short duration overload capability, to start loads with high inrush current
Dual output terminals for convenience in wiring
Three LEDs provide extensive diagnostics. DC OK relay to provide diagnostic information to a PLC, controller, or monitoring system
Universal AC and DC input voltages to accommodate global requirements
Wide operating temperature range accommodates both extreme hot and extreme cold environments
Active Power Factor Correction on most models
Parallel operation capability standard
Supports redundant power supply operation using optional SDN Redundancy modules
特征
廣泛的國際危險場所認證，包括 I 類 2 區、ATEX、IECEx、ExEAC。 危險場所溫度代碼（T-Code）等級 T4
國際離岸認證，包括 ABS 和 DNV-GL
PowerBoost? 可實現短時過載能力，以啟動具有高浪涌電流的負載
雙輸出端子，接線方便
三個 LED 提供廣泛的診斷。 DC OK 繼電器向 PLC、控制器或監控系統提供診斷信息
通用交流和直流輸入電壓以適應全球要求
寬工作溫度范圍適應極熱和極冷環境
大多數型號的有源功率因數校正
并行運行能力標準
使用可選的 SDN 冗余模塊支持冗余電源操作
SOLAHD模塊其他常用型號：
SOLAHD SDN1024100C
SOLAHD SDN1024100CX
SOLAHD SDN1024480C
SOLAHD SDN2024100C
SOLAHD SDN2024100CX
SOLAHD SDN2024480CD
SOLAHD SDN4024100C
SOLAHD SDN4024100CX
SOLAHD SDN4024480C
SOLAHD SDN524100C
