SQUARE-D限位開關9007FTUB4產品介紹

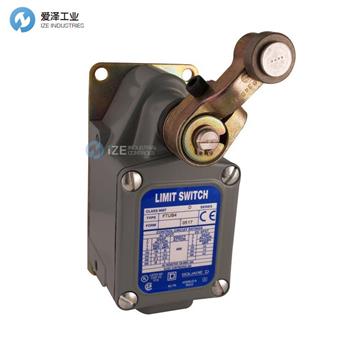

This Square D 9007FTUB4 limit switch with universal contacts is used to make and break an electrical connection in severe-duty foundry casting applications. It has a cast zinc body and cover for durability and dissipating heat. It has a base plate with end mounting holes. The base plate is made of steel for strength, with a zinc plating for resistance to corrosion. The operating sequence for this universal style switch is spring-return SPDT with a neutral position, clockwise (CW) and counterclockwise (CCW) action, and it has a horizontal approach. It has a tapped entry for a 1/2"-14 National Pipe Taper (NPT) cable gland. The switch has an operating temperature range from -12.2 to +85 degrees C and meets the Ingress Protection (IP) 67 standard for protection against dust and immersion. It meets National Electrical Manufacturers Association (NEMA) Types 2, 4, and 13 requirements for an oil-tight, dust-tight, water-tight, and drip-tight enclosure, and it is suitable for indoor or outdoor use. This limit switch is Underwriters Laboratories (UL) listed, Canadian Standards Association (CSA) certified, European Conformity (CE) marked, and it conforms to the Restriction of Hazardous Substances (RoHS) directive.
這款帶有通用觸點的 Square-D 9007FTUB4 限位開關用于在嚴苛的鑄造應用中建立和斷開電氣連接。 它具有鑄鋅主體和蓋子，經久耐用并散熱。它有一個帶端部安裝孔的基板。底板由鋼制成，以保證強度，并鍍鋅以耐腐蝕。該通用型開關的操作順序?yàn)閺椈蓮?fù)位 SPDT，具有中性位置、順時針 (CW) 和逆時針 (CCW) 動作，并且具有水平方法。 它有一個用于 1/2"-14 National Pipe Taper (NPT) 電纜密封套的螺紋入口。該開關的工作溫度范圍為 -12.2 至 +85 攝氏度，并符合入口防護 (IP) 67 標準，可防止 防塵和浸水。它符合美國電氣制造商協會 (NEMA) 2 類、4 類和 13 類對油密、防塵、水密和防滴水外殼的要求，適合室內或室外使用 該限位開關已獲得美國保險商實驗室 (UL) 認證、加拿大標準協會 (CSA) 認證、歐洲合格 (CE) 標志，并且符合有害物質限制 (RoHS) 指令。
SQUARE-D限位開關其他常用型號：
SQUARE-D 9007FTUB4
SQUARE-D Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SQUARE-D限位開關9007FTUB4的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SQUARE-D products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
SQUARE-D限位開關9007FTUB4介紹
