Rockwell繼電器440R-S13R2技術參數
General Specifications | |
Attribute | 440R-S13R2 (CI) |
Dimensions, HxWxD [mm (in)] | 119.14 x 22.5 x 113.6 (0.88 x 4.69 x 4.47) |
Shipping Weight, Approx.[g (lb)] | 225 (0.5) |
Wire Size [mm^2 (AWG)] | 0.2…2.5 (24…14) |
Wiring Category | Copper that withstands 75 °C (167 °F) |
Terminal Screw Torque [N.m (Ib.in)] | 0.4 (4) |
Power Supply Voltage Range | 24V DC PELV/SELV, 0.85…1.1 x rated voltage |
Power On Delay [s] | 5.5 |
Power Consumption [W] | 3.5 |
Case Material | Polyamide PA 6.6 |
Terminal Protection | IP20 |
Enclosure Protection | IP40 (NEMA 1) |
Mounting | 35 mm (1.38 in.) DIN rail in enclosure that is rated to a minimum of IP54 |

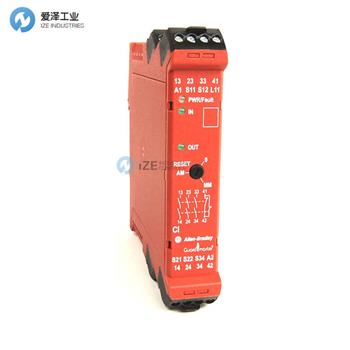

Rockwell繼電器440R-S13R2產品介紹
CI 安全繼電器具有一個雙通道輸入和三個機電繼電器輸出。 通過調整前面的開關，可以將 CI 安全繼電器配置為自動或受監控的手動復位。 CI 安全繼電器具有 SWS 輸出，但不支持 SWS 輸入。
CI 安全繼電器與 MSR127 安全監控繼電器兼容。 CI 安全繼電器與 MSR127 繼電器具有相同數量的輸入和輸出、相同的寬度和相同的端子位置。
The CI safety relay has one dual-channel input with three electromechanical relay outputs. The CI safety relay can be configured for automatic or monitored manual reset by adjusting the switch on the front. The CI safety relay has an SWS output, but does not support SWS input.
The CI safety relay is compatible to the MSR127 safety monitoring relay. The CI safety relay has the same number of inputs and outputs, the same width, and the same terminal locations as the MSR127 relay.
Rockwell繼電器其他常用型號：
Rockwell 440R-S13R2
Rockwell 440R-D22R2
Rockwell 440R-D22S2
Rockwell 440R-EM4R2
Rockwell 440R-EM4R2D
Rockwell 440R-S12R2
