SAMSON限位開關4746-X210系列技術參數
Technical data | |
Control circuit | Switching amplifier according to EN 60947-5-6 |
Proximity switch | SJ3,5-SN |
With metal cable gland | –50 to 100 °C |
Switching function | NC contact |
Electrical connections | One M20x1.5 cable gland for 5.5 to 13 mm clamping range |
Degree of protection | IP 65 |
Weight | Approx. 0.7 kg |
Materials | |
Housing and cover | Powder-coated aluminum |
Lever and shaft | 1.4571 |
Cable gland | M20x1.5, black polyamide |

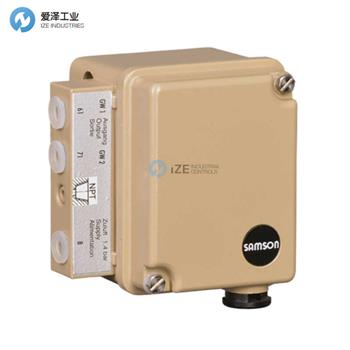

SAMSON限位開關4746系列介紹
電動/氣動限位開關
可選配兩個感應、兩個電動或兩個氣動限位觸點
鋁制外殼
根據 IEC 60534-6 連接到線性執行器，SAMSON 4763 型或 4765 型定位器
開關精度高
安裝的限位觸點不會相互影響
滯后（死區）取決于有效杠桿長度
Electric/pneumatic limit switch
Optionally fitted with two inductive, two electric, or two pneumatic limit contacts
Aluminum housing
Attachment to linear actuators according to IEC 60534-6, to SAMSON Type 4763 or Type 4765 Positioners
High switching accuracy
Mounted limit contacts do not influence each other
Hysteresis (dead band) dependent on effective lever length
SAMSON限位開關4746系列其他常用型號：
SAMSON 4746-12002X0.07-0103
SAMSON 4746-12112100000.07
SAMSON 4746-03202100000.07
SAMSON 4746-1210210000.07
SAMSON 4746-02812100000.07
SAMSON 4746-12102100009-0
SAMSON Limit Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAMSON限位開關4746-12102100009-0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SAMSON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
SAMSON限位開關4746系列4746-12102100009-0技術參數
