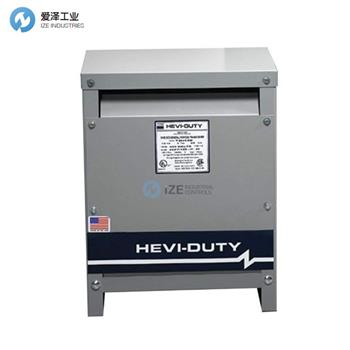

SOLAHD變壓器E2H30S規格描述
kVA | 30 |
Type 3R Weather Shield | WS-14 |
H x W x D | 28 x 23 x 16 |
Approx. Ship Weight (lbs) | 310 |
Elec Conn | 5 |
Primary Amps | 36.1 |
Secondary Amps | 83.4 |
SolaHD Catalog Number | E2H30S |
SOLAHD變壓器E2H30S產品介紹
適用應用
在任何需要改變現有電壓以滿足特定電路或連接設備所需電壓的情況下使用。對于許多電氣電路，國家電氣規范（NEC）要求由三角形-星形（Delta-Wye）連接的變壓器提供獨立的中性次級連接。配電變壓器可以靠近負載位置安裝。安裝無需專用的電纜井，也無需長且昂貴的饋電線路。常見應用包括感性和阻性負載，如電動機、照明和加熱。
特點
符合DOE 2016的節能標準
使用可選防天氣罩時，UL認證/NEMA 3R通風室外外殼（需單獨訂購）
UL 220°C絕緣系統，在滿載下溫升150°C
端子板連接和寬敞的布線室
面板外殼設計減少了勞動時間。內側前蓋上有接線圖。
高效率，低成本運行
有單相和三相型號
SUITABLE APPLICATIONS
Any situation where the available voltage must be changed to accommodate the voltage required by the specific electrical circuit or connected equipment. For many electrical circuits, the National Electrical Code (NEC) requires a separately derived neutral secondary connection provided by Delta-Wye connected transformers.
Distribution transformers can be located close to the load. No vaults are required for installation and no long, expensive feeder ines are needed. Common applications incude inductive and resistive loads such as motors, lighting and heating.
FEATURES
Energy Eficient Compliant to DOE 2016①
UL Listed/NEMA Type 3R ventilated outdoor enclosures when used with optional weather shields (order separately)
UL Class 220°C insulation system, 150°C temperature rise under full load
Terminal board connections and spacious wiring compartment
Panel enclosure design reduces labor time. Wiring diagram on inside front cover.
High efficiency for low cost operation
Single and three phase availability
SOLAHD變壓器其他常用型號：
SOLAHD E2H15S
SOLAHD E2H30S
SOLAHD E2H45S
SOLAHD E2H75S
SOLAHD E2H112S
SOLAHD E2H150S
SOLAHD E2H225S
SOLAHD E2H300S
SOLAHD E2H500S
