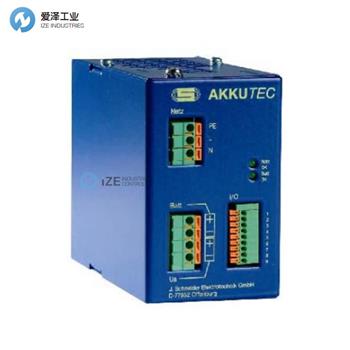

J.SCHNEIDER電源AKKUTEC2403技術參數
Technical Data | |
Nominal input voltage | 230 V AC +15% -10% |
Nominal frequency | 47 ... 63, Hz |
Max. nominal input current | 0,7 A |
Max. charging current | 0,25 A |
Nominal output voltage | 24 V DC |
Output voltage range (with temp.-sensor) | 19,8 V DC ... 27,8 V DC |
Output voltage range (without temp.-sensor) | 19,8 V DC ... 26,8 V DC |
Max. nominal output current | 2,85 A DC |
Charge end voltage with temp.-sensor @ 25° | 27,1 V DC ± 0,4% |
Charge end voltage without temp.-sensor | 26,8 V DC ± 0,4% |
Efficiency | 87% |
Battery type | Pb-Akku, maintenance-free |
Buffer time | Depending on battery and load |
Degree of protection | IP 20 |
Operating temperature | 0 ... 40 °C |
Storage temperature | 0 ... 50°C |
Dimensions (H x W X D) | 92,5 mm x 60 mm x 116 mm |
Weight | 0,55 kg |
Fixation | Snap-on mounting for DIN top hat rail |
J.SCHNEIDER電源AKKUTEC系列產品特點
AKKUTEC系列的電池緩沖直流電源按照備用并聯模式工作，確保與鉛酸蓄電池連接時，在市電故障的情況下，可提供安全的連續直流電源。備用時間取決于蓄電池的充電狀態和放電電流。
該電源具有以下特點：
具有 I/U 充電特性的電池充電器
通過微控制器進行電池管理
通過外部傳感器模塊跟蹤充電電壓的電池電壓（可選）
The battery buffered DC power supply of the series AKKUTEC is working according the stand-by parallel mode and ensures in connection with a lead-acid accumulator a safe continuous DC power supply in case of mains failure.The back-up time is depending from the state of charge of the accumulator and of the discharge current.
The power supply has the following features:
Battery charger with I/U-charging characteristics
Battery management by micro-controller
Battery voltage tracking of the charging voltage by external sensor module (optional)
J.SCHNEIDER電源AKKUTEC系列其他常用型號：
J.SCHNEIDER AKKUTEC2402
J.SCHNEIDER AKKUTEC2403DC
J.SCHNEIDER AKKUTEC2403
J.SCHNEIDER AKKUTEC2403K
J.SCHNEIDER AKKUTEC2403VDS
J.SCHNEIDER AKKUTEC2405
J.SCHNEIDER AKKUTEC2410
J.SCHNEIDER AKKUTEC2412VDS
J.SCHNEIDER AKKUTEC2440
J.SCHNEIDER AKKUTEC1203
J.SCHNEIDER AKKUTEC1208
J.SCHNEIDER AKKUTEC1220
J.SCHNEIDER AKKUTEC4801
J.SCHNEIDER AKKUTEC4803
J.SCHNEIDER AKKUTEC4806
J.SCHNEIDER AKKUTEC4810
