MAHLE接觸器ARD1353技術參數
Control coil voltage options (Volts): | 12V or 24V |
Main rated load current of contact circuit (amps): | 150A |
Dielectric (volt) strength: | 50Hz 1000V AC 1min |
Current volt drop of main contact at 150A: | Not above 80mV |
Mechanical life: | 100,000 times |
Electric life: | 2,000,000 times |
Ambient temperature： | -25 ~ +40°C |
Altitude range： | 0 ~ 2000m |
Max.relative humidity: | 90% at 25°C |
Installation method： | vetically or horizontally |
Voltage fluctuating： | 0.7 ~ 1.1Ue |
Net weight: | 0.695 kg |
MAHLE接觸器ARD1353介紹

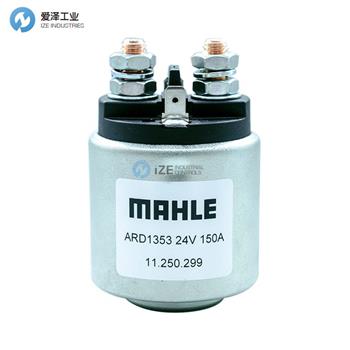

The ARD1353 contactor is a SPST (Single Pole Single Throw; normally open type) DC contactor, designed for direct current loads, particularly for motors of starter engine and hydraulic power transmission system (oil pump), wildly used in electric vehicles such as industrial truck, electric forklift, electric pallet stacker, golf cart, etc. ARD1353 has main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.
Automobile starter engine motor power ON / OFF switch
Folklift hydraulic transmission system oil pump driving motor control
Industrial equipment power switching
Battery powered engine / motor power feeding circuit
Wiring:
Main contacts: 2xM8 stud bolts
Control coil: 2x6.3mm spade terminals
ARD1353接觸器是一種SPST（Single Pole Single Throw；常開型）直流接觸器，專為直流負載設計，特別適用于起動發動機和液壓傳動系統（油泵）的電機，廣泛應用于工業卡車等電動汽車、電動叉車、電動托盤堆垛機、高爾夫球車等。ARD1353主觸點采用銀合金觸頭，耐焊、耐磨、導電性能優良。
汽車啟動發動機電機電源ON/OFF開關
叉車液壓傳動系統油泵驅動電機控制
工業設備電源開關
電池供電的發動機/電機供電電路
接線：
主要觸點：2xM8 雙頭螺栓
控制線圈：2x6.3mm 鏟形端子
MAHLE接觸器其他型號：
MAHLE ARD1353
MAHLE Magnetic ContractorMagnetic Contractor NEW + ORIGINAL+ ONE YEAR WARRANTY
