ZIVAN電池充電器NG1系列技術參數
Technical data |

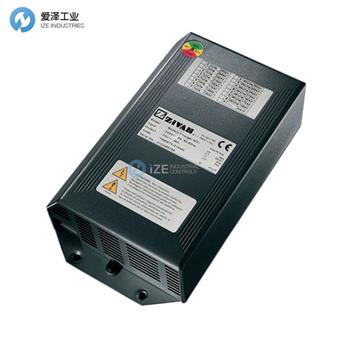

SINGLE-PHASE BATTERY CHARGER Mod. NG1 |
Input Voltage: 230 VAC ± 10 % 115 VAC ± 10 % |
Input frequency: 50 – 60 Hz |
Efficiency: > 85 % |
Minimum power absorbed: < 5 W |
Current absorbed by the battery: < 0.2 mA |
Operating temperature: from – 20 to + 50 °C |
Output short-circuit protection (fuse) |
Inverse polarity protection (fuse) |
Charging curve: programmable |
Accuracy on output voltage: ± 0,5 % |
Thermal compensation of battery voltage (optional with thermal sensor) |
Acoustic alarm |
Auxiliary contacts of main presence and end of charge (Standard Charger) or of air pump control and end of charge (Charger with air pump) |
Cooling: forced |
Case: Metal base, cover in self-extinguishable ABS |
Size: 300 x 160 x 80 mm |
Weight: 2,2 kg |
Enclosure class: IP20 |
In conformity with the requirements of the Low Voltage Directive 73/23/EEC and of the Directive EMC 89/336/EEC and their following alterations. |
ZIVAN電池充電器F6BORO.01000X技術規格
6BORO-01040X input AC230V 8A output DC24V 35A
ZIVAN電池充電器產品介紹
單相電池充電器NG1是一款創新型設備，具有出色的多功能性，可靠性和效率。可以安裝不同的軟件，以更改充電功能并使它們適應各種電池。這種型號的尺寸減小了，既可以安裝在墻上，也可以安裝在板上。因此，可以從任何可用的插座為電池充電，而無需將機器驅動到特定的充電區域。
The Single-phase battery charger NG1 is an innovative device with extraordinary versatility, reliability and efficiency. Different software may be installed in order to change the charging features and to adapt them to every kind of battery. The reduced size of this model allows both installation on a wall, and on-board. Consequently the battery can be recharged from any available outlet, without driving the machine to a specific charging area.
ZIVAN電池充電器NG1系列選型
ZIVAN電池充電器其他常用型號：
ZIVAN F6BORO.01000X
ZIVAN G91TCB-D7040Q
ZIVAN F2BL3K.02000X
ZIVAN G8XT00-10GX03
