EX-TECH限位開關XCWD系列技術規格
TECHNICAL DATA | |
Material | Zamac |
IP rating | IP66/67 according to EN/IEC 60529 |
Operating temperature | -20°C ... +60°C |
Certificate | INERIS 03ATEX0083X |
Marking | II 2 GD |
Repeat accuracy | 0.05 mm on the tripping points, with 1 million operation cycles for actuator with end plunger |
Shock resistance | 25 gn (18ms) according to IEC 60068-2-27 |
Vibration resistance | 5 gn according to IEC 60068-2-27 |
Rated thermal current | 6 A for 2 contacts according to versions, 3 A for 4 contacts |
Rated insulation voltage | 400 V according to IEC 60947-5-1 |
Contact blocks | Snap action - 1 x NC + 1 x NO or 2 x NC + 2 x NO |
Resistance across terminals | ≤ 25 m? according to IEC 60255-7 category 3 |
Electrical features of the contacts | Switches with 2 contacts |

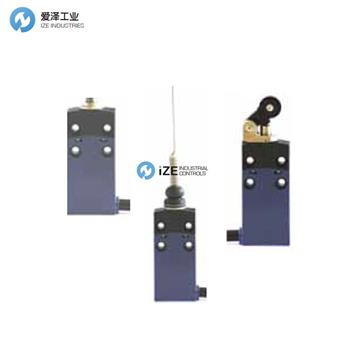

EX-TECH限位開關XCWD系列介紹
The XCWD limit switches is a safe bet for controlling movement. It benefits from the latest developments: modularity, compactness, a very broad range of actuators.
They are designed for intensive use and a very good repeatability.
They are provided in complete assemblies or variable composition with:
? 2 or 4 electrically separate snap action contacts
? Heads that can be adjusted from 15° to 15° on 360° relative to the body
? can substitute the previous range XCWA and XCWF
XCWD限位開關是控制運動的安全選擇。它得益于最新發展：模塊化，緊湊性，種類繁多的執行器。
它們專為密集使用和非常好的可重復性而設計。
它們以完整的程序集或可變組成的形式提供：
?2或4個電氣分離的速動觸點
?頭部可相對于身體在360°上從15°調整到15°
?可以替代以前的范圍XCWA和XCWF
EX-TECH限位開關XCWD系列其他常用型號：
EX-TECH XCWD2145L1
EX-TECH XCWD4145L1
EX-TECH XCWD2146L1
EX-TECH XCWD4146L1
EX-TECH XCWD2145L2
EX-TECH XCWD4145L2
EX-TECH XCWD2146L2
EX-TECH XCWD4146L2
EX-TECH XCWD2145L5
EX-TECH XCWD4145L5
EX-TECH XCWD2146L5
EX-TECH XCWD4146L5
EX-TECH XCWD2145L10
EX-TECH XCWD4115L1
EX-TECH XCWD2146L10
EX-TECH XCWD4146L10
EX-TECH Limit switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EX-TECH限位開關XCWD4115L1的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for EX-TECH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
EX-TECH限位開關XCWD系列XCWD4115L1產品介紹
