WHITE RODGERS接觸器586 314111產品參數
Specification | |
Duty Cycle | Continuous |
Terminal Type | 6 |
Bracket Style | Standard |
Coil Voltage D.C. | 24 |
Coil Resistance (Ohms) | 84 |
Contact Material | Silver Alloy |
Contact Rating (Amps) – Inductive Load | |
Voltage D.C. | 24 |
Normally Open | |
Continuous | 200 |
Inrush | 600 |
Normally Closed | |
Continuous | 100 |
Inrush | 200 |
Temperature Range | -40° to +149°F |
Terminations, Contacts | 5/16”-24 UNF-2A thread |
Terminations, Coil | #10-32 UNF-2A thread |
Recommended Mounting | Vertical plane with coil terminals up |
Hardware Torque, Contact Terminal | 60 in. lbs. max |
Hardware Torque, Coil Terminal | 12-18 in. lbs. |

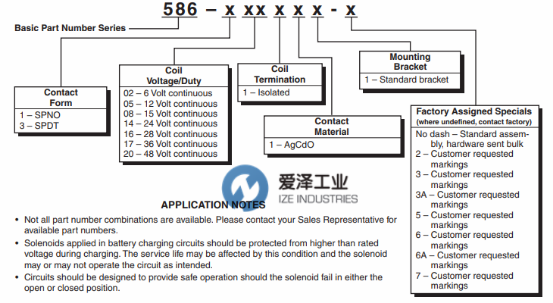

WHITE RODGERS接觸器586系列選型參考
WHITE RODGERS接觸器586系列其他常見型號：
WHITE RODGERS 586-102111-2
WHITE RODGERS 586-105111-3
WHITE RODGERS 586-108111-3A
WHITE RODGERS 586-114111-5
WHITE RODGERS 586-316111-6
WHITE RODGERS 586-317111-6A
WHITE RODGERS 586-320111-7
WHITE RODGERS 586 314111
WHITE RODGERS sealed solenoid NEW + ORIGINAL+ ONE YEAR WARRANTY
