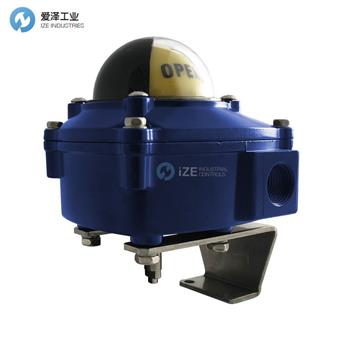

WIREMATIC開關盒ITS300產品參數

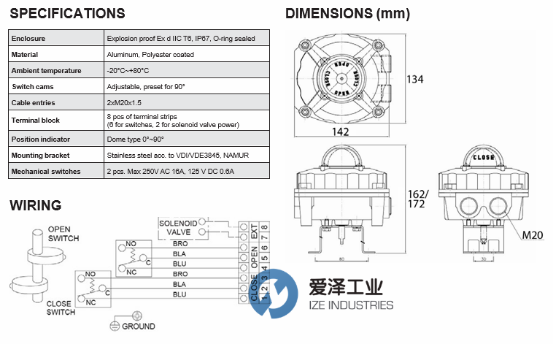

SPECIFICATIONS | |
Enclosure | Explosion proof Ex d IIC T6, IP67, O-ring sealed |
Material | Aluminum, Polyester coated |
Ambient temperature | -20°C~+80°C |
Switch cams | Adjustable, preset for 90° |
Cable entries | 2xM20x1.5 |
Terminal block | 8 pos of terminal strips(6 for switches, 2 for solenoid valve power) |
Position indicator | Dome type 0°~90° |
Mounting bracket | Stainless steel acc. to VDI/VDE3845, NAMUR |
Mechanical switches | 2 pcs. Max 250V AC 16A, 125 V DC 0.6A |
WIREMATIC開關盒ITS300技術參數
專為小型氣動執行器和閥門而設計，以減少安裝空間。 防火等級IP67。
限位開關盒可以直接安裝在執行器上，符合標準VDI / VDE 3845。
ITS的第一個功能是直觀顯示閥門和執行器的當前位置。 圓頂指示器通過顏色指示顯示當前位置。
如果顯示為全紅色，則閥或執行器的當前位置為全關位置，黃色為全開位置（標準）。
可以根據客戶的特定要求提供不同的顏色指示組合。
其次，ITS通過激活機械開關，接近傳感器和其他獨立起作用的磁傳感器在完全打開或關閉位置提供電信號。
Specially designed for small size pneumatic actuators and valves to reduce installation space. Flame proof, IP67.
The Limit Switch boxes can be directly installed on actuators, conforming to the standard VDI/VDE 3845.
The first function of ITS is to provide visual indication of current position of valve and actuator. Dome indicator unit shows current position by colour indication.
If there is full red color indication, current position of valve or actuator is fully closed position, and yellow is on fully open position (standard).
Different Colour indication combination can be provided to customer’s specific requirement.
Secondly ITS provide electrical signal at the fully open or closed position by activating mechanical switches,Proximity sensors and other magnetic sensors which independently makes function.
WIREMATIC開關盒ITS系列其他常見型號：
WIREMATIC ITS-100
WIREMATIC ITS-110
WIREMATIC ITS-120
WIREMATIC ITS-100 CNI
WIREMATIC ITS-110 CNI
WIREMATIC ITS-120 CNI
WIREMATIC ITS-300
WIREMATIC ITS-305
WIREMATIC Limit Switch Boxes NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WIREMATIC開關盒ITS300的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WIREMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
