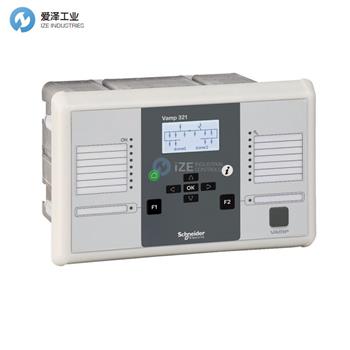

VAMP弧光保護裝置VAMP321產品參數
Specification | |
Auxiliary voltage | |
Vs | 90…265 V ac/dc 110/120/220/240 V ac 110/125/220 V dc Or 18…48 V dc 24/48 V dc |
Power consumption (order code–ABAAA-AAAA-AA) | 20 W (internal) |
Power consumption increases when more I/O cards or optional I/O or com- munication cards are used. | 50 W (output 24 V dc) |
Measuring circuits | |
Rated current IN | 5 A (configurable for CT secondaries 1 – 10 A) |
- Current measuring range | 0…250 A |
- Thermal withstand | 20 A (continuously) 100 A (for 10 s) 500 A (for 1 s) |
- Burden | < 0.2 VA |
Rated current I0 | 5 A / 1 A (optionally 1 A / 0.2 A) |
- Current measuring range | 0…50 A / 10 A |
- Thermal withstand | 4 x I0 (continuously) 20 x I0 (for 10 s) 100 x I0 (for 1 s) |
- Burden | < 0.2 VA |
Rated voltage UN | 100 V (configurable for VT secondaries 50 – 120 V) |
- Voltage measuring range | 0 - 175 V |
- Continuous voltage withstand | 250 V |
- Burden | < 0.5 VA |
Rated frequency fN | 45 - 65 Hz |
Terminal block: | Maximum wire dimension: |
- Solid or stranded wire | 4 mm2 (10-12 AWG) |
Heavy duty trip contact, T1 | |
Number of contacts | 1 |
Rated voltage | 250 V ac/dc |
Continuous carry | 0.208333333 |
Minimum making current | 100 mA @ 24 Vdc |
Make and carry, 0.5 s | 30 A |
Make and carry, 3s | 15 A |
Breaking capacity, DC (L/R=40ms) | |
at 48 V dc: | 0.208333333 |
at 110 V dc: | 0.125 |
at 220 V dc | 0.041666667 |
Contact material | AgNi 90/10 |
Terminal block: | Maximum wire dimension: |
- Phoenix MVSTBW or equivalent | 2.5 mm2 (13-14 AWG) |
Trip contacts, T2, T3... | |
Number of contacts | 1 |
Rated voltage | 250 V ac/dc |
Continuous carry | 0.208333333 |
Minimum making current | 100 mA @ 24 Vdc |
Make and carry, 0.5 s | 30 A |
Make and carry, 3s | 15 A |
Breaking capacity, DC (L/R=40ms) | |
at 48 V dc: | 0.208333333 |
at 110 V dc: | 0.125 |
at 220 V dc | 0.041666667 |
Contact material | AgNi 90/10 |
Terminal block: | Maximum wire dimension: |
- Phoenix MVSTBW or equivalent | 2.5 mm2 (13-14 AWG) |
Trip contacts, HSO | |
Number of contacts | Optionally 2 pcs. |
Rated voltage | 250 V ac/dc |
Continuous carry | 0.208333333 |
Minimum making current | - |
Make and carry, 0.5 s | 30 A |
Make and carry, 3s | 15 A |
Breaking capacity, DC (L/R=40ms) | |
at 48 V dc: | 0.208333333 |
at 110 V dc: | 0.125 |
at 220 V dc: | 0.041666667 |
Contact material | IGBT |
Terminal block: | Maximum wire dimension: |
- Phoenix MVSTBW or equivalent | 2.5 mm2 (13-14 AWG) |
Alarm contacts | |
Number of contacts: | 1 |
Rated voltage | 250 V ac/dc |
Continuous carry | 0.208333333 |
Minimum making current | 100 mA @ 24 V ac/dc |
Breaking capacity, DC (L/R=40ms) | |
at 48 V dc: | 1.15 A |
at 110 V dc: | 0.5 A |
at 220 V dc | 0.25 A |
Contact material | AgNi 0.15 gold plated |
Terminal block | Maximum wire dimension |
- Phoenix MVSTBW or equivalent | 2.5 mm2 (13-14 AWG) |
BIO inputs/outputs, option B | |
Rated output voltage | +30 V DC |
Rated input voltage | +18…265 V dc |
Rated current (BO) | 20 mA |
Rated current (BI) | 5 mA |
BI line (IN) | 3 pcs |
BO lines ( OUT ) | 3 pcs |
VAMP弧光保護裝置VAMP321產品介紹
VAMP 321 IED包括所有電弧閃光保護功能，例如過電流和電弧監控。鞋面321有一個模塊化的設計，它是優化用于中高端的電弧保護系統?？捎糜诘蛪夯蛑袎号潆娤到y(tǒng)的各種電弧保護應用。
?三相電流
?零序電流
?一個用于測量和支持功能的電壓通道
?事件日志、干擾記錄和實時時鐘
?在電流和燈光同時工作或僅在燈光下工作
?信息LCD
?多達12個常開快速跳閘觸點
?兩個轉換報警觸點，包括IF
?機械輸出繼電器的操作時間小于7毫秒，可選IGBT卡操作時間小于1毫秒
?可編程操作區
?持續系統自我監督
VAMP 321旨在用作電弧保護系統的主單元，該系統還包括諸如VAM 10L和弧光傳感器之類的電弧保護I/O單元?；」鈧鞲衅骺蛇B接至輸入/輸出裝置或主機。
The VAMP 321 IED includes all the arc flash protection functions,such as overcurrent and arc supervision. VAMP 321 has a modular design, and it is optimised for use in mid- and high-end arc protection systems. It can be used in various arc protection applications in low or medium voltage power distribution systems.
? Three-phase current
? Zero-sequence current
? One voltage channel for measurements and supporting functions
? Event logs, disturbance recording and real-time clock
? Operation on simultaneous current and light or on light only
? Informative LCD
? Up to 12 normally-open fast trip contacts
? Two change-over alarm contacts including IF
? Less than 7 ms operation time with a mechanical output relay,with optional IGBT card operation time is less than 1ms
? Programmable operation zones
? Continuous system self-supervision
The VAMP 321 is intended to be used as the main unit of an arc protection system, which includes also arc protection I/O units like VAM 10L and arc light sensors. The arc light sensors may be connected to the I/O units or to the main unit.
