WINFORD電纜CBVH68M-x系列技術參數
Specifications | |
Wire | 30 AWG, 34 twisted pairs |
Wire shielding | Alum-Mylar foil and copper braid with drain wire |
Wire outer diameter | 9.8mm nominal |
Wire jacket color | Black |
Connectors (both) | VHDCI 68-pin Male, Metal shell, offset, 10.6mm typ. thickness (offset design allows connectors to fit back-to-back onto a stacked connector, 10.6mm thickness could conflict on NI cards if several stacked connector pairs are adjacent) |
Termination | IDC (Insulation Displacement Contact) |
Pin mapping All | 1:1 |
Standard lengths | CBVH68M-1 (1ft), |
WINFORD電纜VHDCI系列介紹
使用這些電纜連接使用 68 針 VHDCI（超高密度電纜互連）連接器的設備。這些美觀的電纜兩端均配有 68 針 VHDCI 連接器、雙絞線和屏蔽電纜護套。它們提供公對公配置以及公對母（VHDCI 延長線）配置。所有公端均使用金屬連接器罩，而母端則采用包覆成型。每種配置均提供多種電纜長度。
VHDCI 連接器使用滑動帶狀觸點而不是標準引腳。該連接器提供高度緊湊的觸點排列，這在空間有限的布置中特別有用。VHDCI 連接器有時也稱為超高密度連接器接口，用于 SCSI-5 連接，但這些電纜尚未經過 SCSI-5 適用性測試。這些電纜與 Winford Engineering 的 68 針 VHDCI 分線板兼容。
? VHDCI 68 針連接器
? 提供公對公或公對母兩種連接方式
? 金屬連接器罩（公端）
? 屏蔽雙絞線

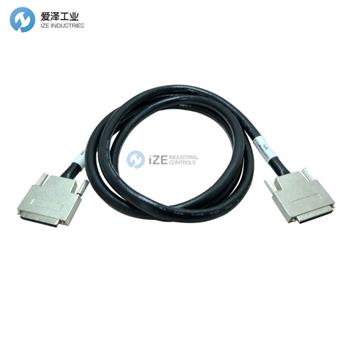

Use these cables to interconnect equipment which utilizes 68-pin VHDCI (Very High Density Cable Interconnect) connectors. These attractive cables feature 68-pin VHDCI connectors on each end, twisted pair wiring, and a shielded cable jacket. They are offered in both the Male-to-Male configuration as well as the Male-to-Female (VHDCI Extension Cable) configuration. All male ends use metal connector hoods, while female ends are overmolded. Several cable lengths are offered in each configuration.
VHDCI connectors utilize sliding ribbon contacts instead of standard pins. This connector provides a highly compact arrangement of contacts which is particularly useful in arrangements where space is limited. VHDCI connectors are also sometimes called Very High Density Connector Interfaces and are used on SCSI-5 connections, though these cables have not been tested for suitability with SCSI-5. These cables are compatible with Winford Engineering's 68-pin VHDCI breakout boards.
? VHDCI 68-pin connectors
? Offered as Male-Male or Male-Female
? Metal connector hoods (on male ends)
? Shielded, twisted pair wiring
WINFORD電纜VHDCI系列其他常用型號：
WINFORD CBVH68M-1
WINFORD CBVH68M-1.33
WINFORD CBVH68M-3
WINFORD CBVH68M-6
WINFORD CBVH68M-10
WINFORD CBVH68M-20
WINFORD CABLES NEW + ORIGINAL+ ONE YEAR WARRANTY
