BLUE SEA斷路器7149技術參數
Specifications | |
Amperage | 200A |
Maximum Voltage | 48V DC |
Mounting | Surface Mount |
Circuit Breaker Type | Thermally responsive Bi-metal blade |
Terminal Stud Torque | 75 in-lb (8.47 Nm) |
Interrupt Capacity | 5000A @ 14VDC |
Minimum Operating Temperature | -40° C |
Maximum Operating Temperature | 85° C |
Case Material | Thermoset Polyester |
Circuit Breaker Class | Type III - switchable/manual reset - trip free |
Mounting Hole | Accept #10 (M5) Screw |
Terminal Stud Size | 5/16" - 18 |
BLUE SEA斷路器7149產品介紹

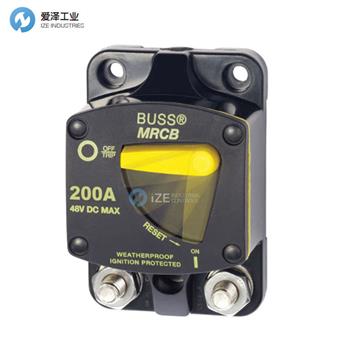

187 系列斷路器 - 表面安裝 200A
? 將開關和電路保護功能整合到一個設備中
? 清晰的單桿操作
? “無跳閘”設計在故障電流條件下無法保持“開啟”狀態
? 防水
? 凹陷安裝孔，外觀整潔
? 接線柱周圍的大間隙可容納大規格線耳
? 堅固的 5/16 M8 端子提供高扭矩連接
? 垂直/水平方向的大桿可指示跳閘狀態
? 點火保護 - 可安全安裝在汽油動力船上
? 符合 SAE J1171 外部點火保護要求
187-Series Circuit Breaker - Surface Mount 200A
? Combines switching and circuit protection into a single device
? Clear, single lever operation
? "Trip Free" design cannot be held "ON" during fault current condition
? Waterproof
? Recessed mounting holes for clean appearance
? Large Clearance around terminal studs accept heavy gauge wire lugs
? Robust 5/16 M8 terminals provide high torque connections
? Large lever with vertical/horizontal orientation provides indication of trip status
? Ignition protected - Safe for installation aboard gasoline powered boats
? Meets SAE J1171 external ignition protection requirements
