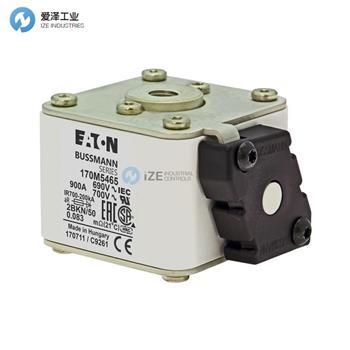

EATON熔線環170M5465介紹
General specifications | |
Product Name | Eaton Bussmann series high speed square body fuse |
Catalog Number | 170M5465 |
Model Code | FUSE 900A 690V 2BKN/50 AR UC |
Product Length/Depth | 77 mm |
Product Height | 59 mm |
Product Width | 51 mm |
Product Weight | 557 g |
Warranty | Not Applicable |
Compliances | CE Marked |
Certifications | IEC Rated |
Product specifications | |
Type | Fuse |
Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers |
Amperage Rating | 900 A |
Breaking capacity | 200 kA |
Fuse indicator | Centre fuse status indicator |
Insulated metal gripping lugs (IMGL) | No |
Utilization category | aR (accompanied semiconductor protection) |
Voltage type | AC |
Fuse size | 2 |
Rated voltage AC | 690 V |
Center-to-center distance of connections | 50.3 mm |
Current type | AC |
Mounting dimension | M10 |
Class | Class aR |
Clearing (I2T) | 840000 at 660 V |
Watt losses | 110 W |
Fuse shape | Square body, flush end contacts |
Pre arc (I2T) | 125000 |
Color | None |
Interrupt rating | 200 kAIC |
Fitted with: | Type K Indicator for micro |
Construction size | 2 |
Mounting method | Flush |
Packaging type | Standard |
Voltage rating | 690 V (IEC), 700 V (UL) |
Fuse type | Flush end |
Fuse system (according to IEC 60269) | IEC 60269-4 flush end connections type A |
EATON熔線環其他常用型號：
EATON 170M5465
EATON 170M5117
EATON 170M5808D
EATON 170M5308
EATON 170M5394
EATON 170M5210
EATON 170M5468
EATON 170M5108
EATON 170M5566
EATON 170M5012
EATON 170M5213
EATON 170M5218
EATON 170M5388
EATON 170M5010
EATON 170M5459
EATON 170M5464
EATON 170M5264
EATON 170M5110
EATON 170M5408
EATON 170M5212
EATON 170M5990
EATON Fusible Link NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EATON熔線環170M5465的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for EATON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
