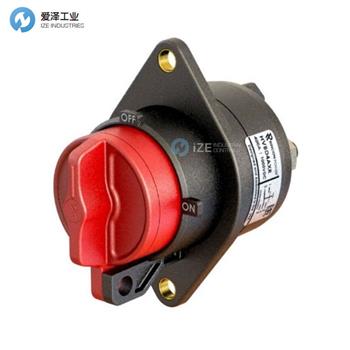

RINCON POWER電池開關HVBD系列技術參數
SPECIFICATIONS | |
Contact Arrangement | Form X, SPST |
Operating Voltage | Up to1,000VDC (no switching under load) |
Dielectric Withstand Voltage | 5,000VDC, 1 minute |
Continuous Current | 300A, 400A, or 600A continuous |
Make and Break2 (400A @ 24VDC) | 5,000 cycles |
Voltage Drop (Max at nominal load) | 40mV |
Min Insulation Resistance | 100Mohm |
Shock, 1/2 Sine, 11ms | 25G |
Vibration, Sinusoidal (10-500Hz Peak) | 4G |
Vibration, Sinusoidal (500Hz-2000Hz Peak) | 20G |
Operating Temperature3 | -55?C to 85?C |
Ingress Protection | Exceeds IP69, (Hermetically sealed) |
Weight | 425g |
Case Material | PA GF |
Switch Lever Material | PA GF |
Mounting | 100mm | C:C, 2X M8 |
Mounting Position | Any |
Auxiliary Contact (SPDT)– Continuous Current | 3A |
RINCON POWER電池開關HVBD系列介紹
HVBD 是電池?cái)嚅_(kāi)技術的新水平
? 堅固的金屬陶瓷氣密密封
? 行業優質的介質耐壓
? 高溫性能
? 超低接觸電阻在整個生命周期
? 為惡劣環境做好準備
? 專為符合 OSHA 標準的上鎖/掛牌 (LOTO) 而設計
? GIGAVAC1 HBD 系列電池?cái)嗦烽_(kāi)關的直接替代品
? 可選的集成輔助觸點
HVBD is the next level in battery disconnect technology
? Robust metal-ceramic hermetic seal
? Industry leading dielectric withstand voltage
? High temperature performance
? Ultra-low contact resistance over life
? Ready for harsh environments
? Designed for OSHA compliant lockout/tagout (LOTO)
? Drop-in replacement for GIGAVAC1 HBD Series battery disconnect switches
? Optional integrated auxiliary contacts

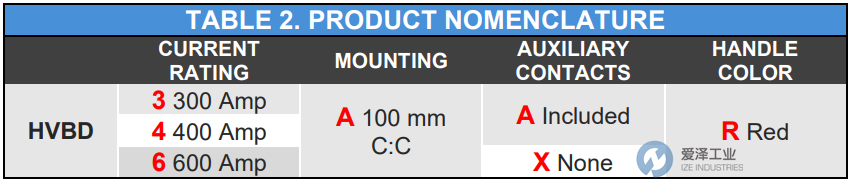

RINCON POWER電池開關HVBD系列選型
RINCON POWER電池開關HVBD系列其他常用型號：
RINCON POWER HVBD4AXR
RINCON POWER HVBD4AAR
RINCON POWER HVBD6AAR
RINCON POWER HVBD6AXR
RINCON POWER HVBD3AAR
RINCON POWER HVBD3AXR
RINCON POWER Battery Disconnect NEW + ORIGINAL+ ONE YEAR WARRANTY
