Teledyne RESON水聽器TC4032技術參數
Usable frequency range: | 5Hz to120kHz |
Linear frequency range: | 15Hz to 40kHz ±2dB |
Receiving sensitivity: | -170dB re 1V/ μPa (-164dB with differential output) |
Horizontal directivity: | Omnidirectional ±2dB at 100kHz |
Vertical directivity: | 270° ±2dB at 15kHz |
Operating depth: | 600m |
Survival depth: | 700m |
Operating temperature range: | -2°C to +55°C |
Storage temperature range: | -30°C to +70°C |
Weight (in air): . | 720g without cable |
Max. output voltage: | ≥3.5Vrms (at 12VDC) |
Preamplifer gain: | 10dB |
Supply voltage: | 12 to 24VDC |
High pass filter: . | 7Hz -3dB |
Quiescent supply urrent: | ≤19mA at 12VDC |
Encapsulating material: | Special formulated NBR |
Housing material: | Alu Bronze |

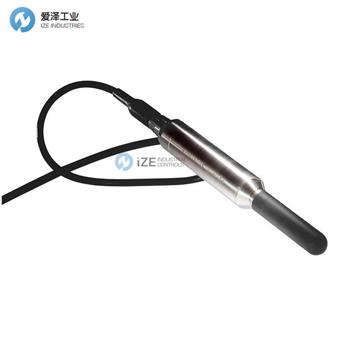

Teledyne RESON水聽器TC4032產品介紹
TC4032 通用水聽器在寬頻率范圍內提供高靈敏度、低噪聲和平坦的頻率響應。
高靈敏度和聲學特性使 TC4032 甚至能夠檢測低于“海況 0”的水平非常微弱的信號。TC4032 包含一個靜電屏蔽的高靈敏度壓電元件，該元件連接到一個集成的低噪聲 10dB 前置放大器。TC4032 前置放大器能夠驅動超過 1.000 米的長電纜，并且前置放大器具有插入校準功能。
默認情況下，放大器提供差分輸出。在電噪聲環境中使用長電纜時，差分輸出是一個優勢。在單端模式下使用：將正極輸出引腳與 GND 一起使用。
The TC4032 general purpose hydrophone offers a high sensitivity, low noise and a flat frequency response over a wide frequency range.
The high sensitivity and acoustic characteristics makes TC4032 capable of producing absolute sound measurements and detecting even very weak signals at levels below “Sea State 0”. The TC4032 incorporates an electrostatically shielded highly sensitive piezoelectric element connected to an integral low-noise 10dB preamplifier. The TC4032 preamplifier is capable of driving long cables of more than 1.000 meters, and the preamplifier features an insert calibration facility.
Per default the amplifier is provided with differential output. The differential output is an advantage where long cables are used in an electrically noisy environment. For use in single ended mode: Use positive output pin together with GND.

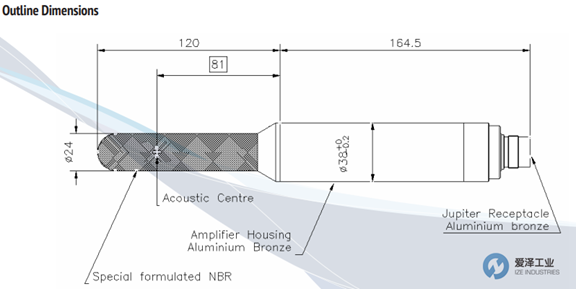

Teledyne RESON水聽器TC4032技術尺寸
Teledyne RESON水聽器其他常用型號：
Teledyne TC4013
Teledyne TC4014
Teledyne TC4032
Teledyne TC4033
Teledyne TC4034
Teledyne TC4035
Teledyne TC4037
Teledyne TC4038
Teledyne TC4040
Teledyne TC4047
Teledyne TC4059
