AKRON噴嘴1702技術參數
Specifications | |
Style | 1702 |
Weight | 3 lbs (1.4 kg) |
Type | Selectable Gallonage |
Material | Pyrolite |
Brand | TurboJet |
Swivel Inlet | 1'' (25mm) |
Length | 9 1/4'' (206 mm) |
Flow (GPM) | 13-25-40-60 |
Flow (LPM) | 50-100-150-230 |
AKRON噴嘴1702產品介紹
具有多個固定恒定加侖設置的輕型霧化和直流噴嘴。噴嘴應具有旋轉齒、多圖案棘爪、帶雙手柄止動件的一體式實心橡膠狀手柄、雙驅動耳軸和擠壓的 Pyrolite 主體。噴嘴在大霧時也應具有最小 110° 角，全時旋轉入口，能夠在不關閉的情況下進行沖洗。
特征
? 模式識別
? 更大更易讀的標簽
? 操作簡單（1/4 圈從直線流到霧）
? 凸起的凸耳標記為有限能見度操作的直線流
? 易于保養和維修
? 13-25-40-60 GPM，50-100-150-230 LPM
? 100 psi (7 bar) 工作壓力下的流量設置（230 psi/16 bar 最大工作壓力），最大靜水壓力 40 bar
? 凸起的保險杠凸耳用于直線流模式識別
? 與 790 型 Quick-Attack 泡沫管兼容
? 符合歐洲標準和 NFPA 1964
? 1701 型渦輪噴氣噴嘴的替代品

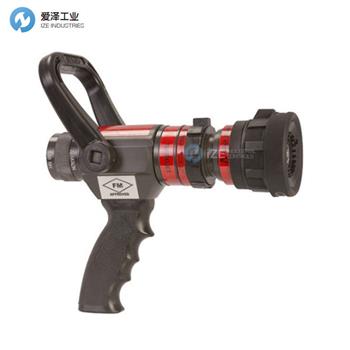

Lightweight fog and straight stream nozzle with multiple fixed constant gallonage settings. The nozzle shall have spinning teeth, multiple pattern detents, a one piece solid rubber-like handle with dual handle stops, dual drive trunnions and an extruded Pyrolite body. The nozzle shall also have a minimum 110° angle at wide fog, a full-time swivel inlet, be capable of flushing without shutting down. Must meet all aspects of NFPA 1964.
Features
? Pattern Identification
? Larger more legible labels
? Simple to operate (1/4 turn from straight stream to fog)
? Raised lug marks straight stream for limited visibility operations
? Easy to service & repair
? 13-25-40-60 GPM, 50-100-150-230 LPM
? Flow setting at 100 psi (7 bar) operating pressure (230 psi/16 bar maximum operating pressure), maximum hydrostatic pressure 40 bar
? Raised bumper lug for straight stream pattern identification
? Compatible with Quick-Attack Foam Tube Style 790
? Meets European Standard & NFPA 1964
? Replacement for style 1701 Turbojet nozzle
AKRON噴嘴其他常用型號：
AKRON 1701
AKRON 1702
AKRON 1703
AKRON 1704
AKRON 1705
AKRON 1711
AKRON Nozzle NEW + ORIGINAL+ ONE YEAR WARRANTY
