KROEPLIN卡規G415產品參數
Specification | |
Type designation | G415 |
Display MM / INCH | mm |
Measurement application | Inside groove measurement |
Measuring span mes | 50 mm |
Measuring range Meb | 15 - 65 mm |
Display area Azb | 14.5 - 65.5 mm |
Digit increment between | 0.02 / 0.05 mm |
Error limit G | 0.06 mm |
Repeat limit r | 0.04 mm |
Measuring force F min. | 1.0 N |
Measuring force F max. | 1.8 N |
Measuring contact shape bew. | HM ball ? 1.5 mm |
Measuring contact shape fixed | HM ball ? 1.5 mm |
Measuring contact length fixed Hf | 6.0 mm |
Max. Measuring contact thickness | 1.9 mm |
Max. Probe arm length L | 188 mm |
Device weight | 415 g |
Reference temperature | 20 ° C |
operating temperatur | 10-30 ° C |
Storage temperature | -10 - 50 ° C |
Protection class | IP67 |
Digimatic interface | Item No. 1961-09 + 2482-07 |
Interface USB | Item No. 1961-09 + 2482-05 |
U-Wave? interface | Item No. 1961-09 + 2482-04 + 2482-01 + 2482-02 |
Wooden box | Item No. 1732-51 |
bracket | Item No. 8004-55 |

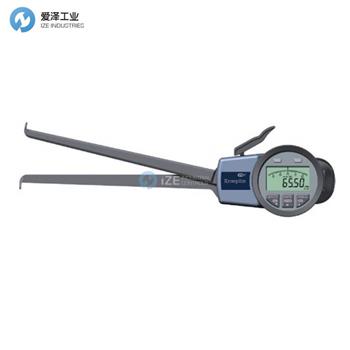

KROEPLIN卡規G415產品介紹
測量范圍Meb：15-65 mm
數字增量Zw：0.02 / 0.05 mm
最大探頭臂長L：188毫米
Measuring range Meb: 15 - 65 mm
Digit increment Zw: 0.02 / 0.05 mm
max. Probe arm length L: 188 mm
