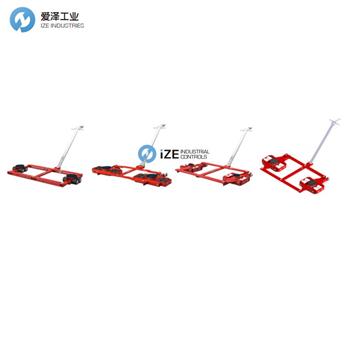

GKS液壓裝置TANDEM系列介紹
GKS PERFEKT可操縱TL Tandem Dollies是運輸機器，框架結構和大件貨物的理想解決方案，需要四點支撐以實現最佳穩定性。GKS的四款Tandem Dolly車型的負載能力從13,200到88,000磅不等。
Tandem Dolly設計用作前部支撐，而不是GKS PERFEKT L推車。它可以搭配以下任何一種作為后部支撐：匹配的F dolly，RL dolly或第二個Tandem Dolly。Tandem Dolly由兩個L型推車組成，可單獨使用。
GKS的Tandem Dollies采用特殊的GKS滾輪設計，不會標記地板。具有低滾動阻力和最高穩定性，適用于多種用途。在負載，磨損和沖擊下測試性能。
Tandem Dolly型TL6和TL12與GKS小車型號F3兼容，最高可達F18，所有型號的裝載高度均為110 mm。重型Tandem Dolly車型TL20，TL40和TL60均按訂單生產。與GKS推車F20兼容，最高可達F60，所有裝載高度均為180 mm。
GKS的推車采用最先進的制造方法進行機械加工和精加工。無變形結構經過精確焊接，可提供最佳穩定性。GKS的Tandem Dollies的低調設計也提升了穩定性，使負載保持接近地面，從而實現安全，低重心和低揚程間隙。
GKS PERFEKT’s steerable TL Tandem Dollies are the ideal solution for transporting machines, frame structures and bulky goods that require four-point support for optimal stability. Our four Tandem Dolly models range from 13,200- to 88,000-pound load capacities.
The Tandem Dolly is designed to serve as the front support, instead of a GKS PERFEKT L dolly. It can be paired with any of the following as the rear support: the matching F dolly, RL dolly or a second Tandem Dolly. The Tandem Dolly consists of two L dollies, which can be used separately.
Our Tandem Dollies feature special GKS rollers, which are designed not to mark floors. They provide low rolling resistance and the highest stability for numerous uses. We test their performance under load, abrasion and shock.
Tandem Dolly models TL6 and TL12 are compatible with GKS dolly models F3 up to F18, which all have a loading height of 110 mm. Our heavy-duty Tandem Dolly models TL20, TL40 and TL60 are made to order. They are compatible with GKS dollies F20 up to F60, all with a loading height of 180 mm.
Our dollies are machined and finished using state-of-the-art manufacturing methods. And their distortion-free structure is accurately welded to provide optimal stability. The low-profile design of our Tandem Dollies also promotes stability, keeping loads close to the ground for a safe, low center of gravity and low head clearance.
GKS dollies are available in a nickel-plated version to transport loads in clean rooms in a variety of industries, such as food processing, chemical processing, electronics, pharmaceuticals and chip making.
GKS-Perfekt液壓裝置Tandem TL6
可轉向和寬度可調的小車，帶有2個轉盤作為支撐點，可承載高達13,200 lbs / 6 t的負載裝載高度僅為4.3/110 mm。
標準僅作為4點系統與寬度可調的小車F6（項目＃10208）組合使用，最大可達4個。26,400磅/12噸負載能力。
由于相同的裝載高度可與GKS-Perfekt推車F3/F9/F12/F18（產品編號10206/11070/10312/10215）或2個旋轉推車RL2或RL4（產品編號10238/10240）互換。
GKS-Perfekt Transport Dolly Tandem TL6
Steerable and width-adjustable dolly with 2 turntables as supporting points for the transport of loads up to 13,200 lbs/6 t Loading height 4.3/110 mm only.
Standard use only as a 4-point-system in combination with the width-adjustable dolly F6 (item#10208) up to max. 26,400 lbs./12 t load capacity.
Due to the same loading height interchangeable with GKS-Perfekt dollies F3/F9/F12/F18 (item # 10206/11070/10312/10215) or 2 Rotating dollies RL2 or RL4 (item # 10238/10240).
GKS-Perfekt液壓裝置Tandem TL12
可轉向和寬度可調的小車，帶有2個轉盤作為支撐點，可承載高達26,400磅的負載。12噸裝載高度僅為4.3/110 mm。
標準僅作為4點系統與寬度可調的小車F12（項目＃10312）組合使用，最大可達4個。52,800磅/24噸負載能力。
由于相同的裝載高度可與GKS-Perfekt推車F3/F6/F9/F18（項目＃10206/10208/11070/10215）或2個旋轉推車RL2或RL4（項目＃10238/10240）互換。
GKS-Perfekt Transport Dolly Tandem TL12
Steerable and width-adjustable dolly with 2 turntables as supporting points for the transport of loads up to 26,400 lbs. /12 t Loading height 4.3" /110 mm only.
Standard use only as a 4-point-system in combination with the width-adjustable dolly F12 (item # 10312) up to max. 52,800 lbs./24 t load capacity.
Due to the same loading height interchangeable with GKS-Perfekt dollies F3/F6/F9/F18 (item # 10206/10208/11070/10215) or 2 Rotating dollies RL2 or RL4 (item # 10238/10240).
GKS-Perfekt液壓裝置Tandem TL20
可轉向和寬度可調的小車，帶有2個轉盤作為支撐點，可承載高達20噸的負載。裝載高度僅180 mm。
標準僅作為4點系統與寬度可調的小車F20（項目＃11060）組合使用，最大可達4個。40噸負載能力。
由于相同的裝載高度可與GKS-Perfekt推車F30 / F40 / F60（項目編號11992/11770/10226）互換。
GKS-Perfekt Transport Dolly Tandem TL20
Steerable and width-adjustable dolly with 2 turntables as supporting points for the transport of loads up to 20 t. Loading height 180 mm only.
Standard use only as a 4-point-system in combination with the width-adjustable dolly F20 (item # 11060) up to max. 40 t load capacity.
Due to the same loading height interchangeable with GKS-Perfekt dollies F30/F40/F60 (item # 11992/11770/10226).
GKS-Perfekt液壓裝置Tandem TL40
可轉向和寬度可調的小車，帶有2個轉盤作為支撐點，可承載高達88,000磅的載荷。40噸裝載高度僅為7.1英寸/ 180毫米。
標準僅作為4點系統與寬度可調的小車F40（項目＃11770）組合使用，最大可達4個。176,000磅/80噸負載能力。
由于相同的裝載高度可與GKS-Perfekt推車F20 / F30 / F60（項目編號11060/11992/10226）互換。
GKS-Perfekt Transport Dolly Tandem TL40
Steerable and width-adjustable dolly with 2 turntables as supporting points for the transport of loads up to 88,000 lbs. /40 t Loading height 7.1"/180 mm only.
Standard use only as a 4-point-system in combination with the width-adjustable dolly F40 (item # 11770) up to max. 176,000 lbs./80 t load capacity.
Due to the same loading height interchangeable with GKS-Perfekt dollies F20/F30/F60 (item # 11060/11992/10226).

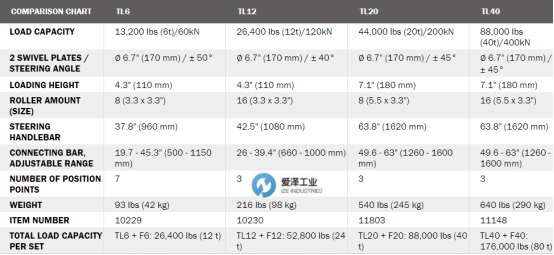

GKS液壓裝置TANDEM系列TL6/TL12/TL20/TL40參數描述
愛澤工業(IZE_INDUSTRIES)特價經銷、常用GKS液壓裝置型號：
GKS液壓裝置TANDEMTL6 10229
GKS液壓裝置TANDEMTL12 10230
GKS液壓裝置TANDEMTL20 11803
GKS液壓裝置TANDEMTL40 11148
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
愛澤工業為用戶提供咨詢、資料上門、輔助選型，售后安裝服務，操作人員免費培訓等服務。
歡迎來電索取樣本資料和產品信息。
如果有任何關于GKS液壓裝置TANDEM系列TL6/TL12/TL20/TL40的疑問，請隨時致電我們，愛澤工業（021-31006702）。我們將盡全力解決您的問題。
有關GKS液壓裝置TANDEM系列TL6/TL12/TL20/TL40更詳細的信息或者GKS相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.wap.pnxqid.cn.
GKS液壓裝置TANDEM系列 示例TL6/TL12/TL20/TL40產品描述及技術數據
