SKF聽診器TKST11技術參數
Properties | |
Frequency | 30 – 15000 Hz |
Display | Black and white LCD |
Software features | Volume control |
Max recorder output | 250 mV |
Headset impedance | 32 ? |
Headset weight | 0.639 lb |
Auto switch off | Yes, after 10 min |
Volume adjustment steps | 10 |
Housing material | PC/ABS blend, overmoulded with TPU rubber |
Colour | Blue |
Battery | 2x AA (Alkaline (incl.) or Rechargable) |
Battery life | 30 h |
Probe lenghts | 70 mm |
Instrument dimensions | 230 × 70 × 38 mm |
Instrument Weight | 0.639 lb |
Degree of protection (IP) | IP 40 |
Operating temperature range | 32 – 104 °F |
Relative humidity | 10 to 90%, non-condensing |
Case dimensions (l x h x w) | 360 x 110 x 260 mm |
Content | 1x TKST 11 Handset |
Total product weight | 3.638 lb |
SKF聽診器TKST11產品介紹
TKST 11 是一款手持式聽診器，裝在堅固的手提箱中，配有兩個探頭、耳機和電池。來自機器的噪音或振動由棒式探頭拾取并傳輸?shù)铰晫W傳感器，在聲學傳感器中振動被轉換為電信號，該信號由儀器的電子器件處理和放大。聽筒有兩個用于放大信號的輸出（耳機和錄音機連接）。該耳機是經認可的護耳器。
輕巧的人體工學設計
易于單手操作
出色的音質
經批準的護耳器耳機
提供在線預先錄制的演示樣本
提供兩個探頭
可調節音量控制。

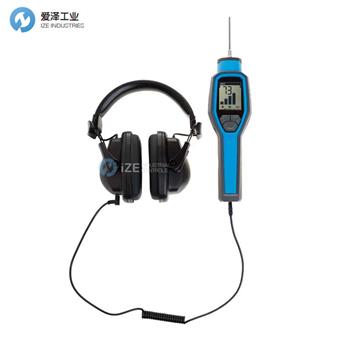

The TKST 11 is a hand-held stethoscope that is supplied in a sturdy carrying case complete with two probes, headset and batteries. The noise or vibration from the machine is picked up by the stick probe and transmitted to an acoustic sensor where the vibrations are converted into an electrical signal, which is processed and amplified by the electronics of the instrument. The handset has two outputs for the amplified signal (headset and recorder connection). The headset is an approved ear defender.
Lightweight ergonomic design
Easy to operate with one hand
Excellent sound quality
Approved ear defender headphone
Online pre-recorded demo samples available
Supplied with two probes
Adjustable volume control.
