HVA真空閥11000系列技術參數
Materials | |
Valve body and gate | 304 stainless steel |
Welded bellows shaft seal: | AM-350 |
Vacuum | |
Pressure Range: | HV: 1×10-9 mbar |
Helium leak rate: | <2×10-9 mbar I/s |
Differential pressure closed: | 1 bar in either direction |
Maximum Δ pressure before opening: | <30 mbar |
Mechanism | |
Manual: | hand crank |
Pneumatic air service: | 80 psig |
Solenoid : | supplied voltage: 120V AC, 50/60 Hz |
Position indicator, max: | 115 VAC or 28 VDC, 20 mA |
Bonnet / gate seals | |
HV: | Viton? elastomer |
UHV: | Copper / Viton? elastomer |
Bakeout Temperature | without solenoid |
Elastomer sealed bonnet: | 150°C |
Metal sealed bonnet: | Value open: 200°C |
Actuator: | Manual: 60°C |
Mounting Position | Any |
Cycles Until Service | 100,000 Cycles dependent on process |
HVA真空閥11000系列介紹
The KF, ISO-F, ISO-K, ASA and JIS flanged 11000 Series Standard Cycle Gate Valves are designed for high vacuum applications. These valves provide valving for cryopumps, turbo pumps, ion pumps and other applications requiring clean, low outgassing valves. Metal-sealed CF flanges provide compatibility with UHV systems when pressure ranges approximate 1 x 10-10 mbar and higher bakeout temperatures of 200°C are needed. These valves can also be configured for higher temperatures.
11000 Series Standard Cycle Gate Valves are designed for high vacuum and ultra high vacuum applications.
All Flange Types Available - KF, ISO-F, ISO-K, CF-F, ASA and JIS
Multi Application Use - Cryopumps, turbo pumps, ion pumps
Low Vibration/Lowest Outgassing - Proprietary vacuum brazing process
UHV Systems - Metal sealed CF flanges allow 1 x 10 mbar and temperatures of 200°C
Custom - Custom sizes and higher temperature options available
Size Range - Sizes range from 5/8” up to 40” (16mm - 1000mm)
KF，ISO-F，ISO-K，ASA和JIS法蘭11000系列標準循環閘閥專為高真空應用而設計。這些閥門為低溫泵，渦輪泵，離子泵和其他需要清潔，低排氣閥的應用提供閥門。當壓力范圍約為1 x 10-10 mbar且需要更高的烘烤溫度200°C時，金屬密封CF法蘭可與UHV系統兼容。這些閥也可以配置為更高的溫度。
11000系列標準循環閘閥設計用于高真空和超高真空應用。
所有可用的法蘭類型-KF，ISO-F，ISO-K，CF-F，ASA和JIS
多種用途-低溫泵，渦輪泵，離子泵
低振動/低放氣-專有真空釬焊工藝
UHV系統-金屬密封CF法蘭允許1 x 10 mbar和200°C的溫度
自定義-提供自定義尺寸和更高溫度選項
尺寸范圍-尺寸范圍從5/8英寸到40英寸（16mm-1000mm）
HVA真空閥11000系列其他常用型號：
HVA 11120-0060
HVA 11120-0064
HVA 11120-0150
HVA 11120-0154
HVA 11120-0200
HVA 11120-0204
HVA 11120-0250
HVA 11120-0254
HVA 11120-0300
HVA 11120-0304
HVA 11120-0400
HVA 11120-0404
HVA 11120-0600
HVA 11120-0604
HVA 11120-0800
HVA 11120-0804
HVA 11120-1000
HVA 11120-1004
HVA 11120-1200
HVA 11120-1204
HVA BALANCING VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HVA真空閥11120-0150的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HVA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.

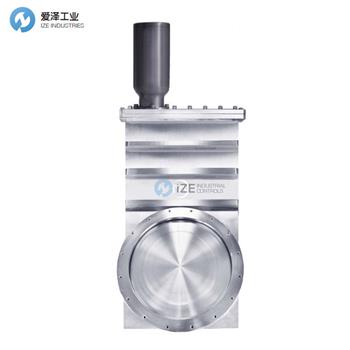

HVA真空閥11000系列11120-0150介紹
