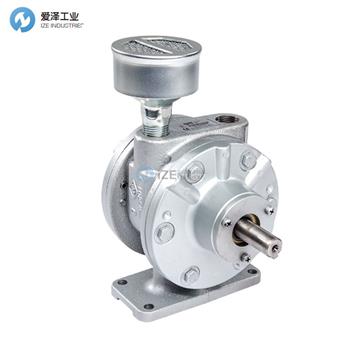

GAST潤滑馬達6AM-ARV-55產品參數
Specification | |
UOM | EA |
Horsepower | 4 hp (3.0 kw) |
Net weight | 21 lbs (9.5 kg) |
Series | 6AM |
Inch/Metric | Inch |
Maximum torque | 115 lb/in |
Torque at maximum speed | 84 lb/in |
Type of mounting | D80/Metric |
Maximum pressure | 100 psi (7.0 bar) |
Speed at maximum torque | 300 rpm |
Rotation | Reversible |
Maximum speed | 3,000 rpm |
Manufacturer | Gast |
Application | Mixing equipment, conveyor drives, pump drives, food packaging, pharmaceutical packaging, hoists and winches, hose reels, fiberglass choppers, tension devices, turntables and tire/wheel balancers. |
GAST潤滑馬達6AM-ARV-55產品介紹
緊湊和便攜式的6AM系列提供了氣動馬達的運行速度和功率輸出，可以對其進行調整以滿足您的應用的精確需求。它們的節流和壓力控制不僅比電動機控制具有成本效益，而且它們可以長時間失速或過載，而不會損壞電動機。此外，這些Gast氣動馬達運行冷，沒有電火花，因此非常適合在危險場所使用。
The compact and portable 6AM series offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool running and have no electrical spark, which makes them ideal for use in hazardous locations.
GAST潤滑馬達6AM系列其他常見型號：
GAST 6AM-FRV-5A
GAST 6AM-FRV-81
GAST 6AM-FRV-17A
GAST 6AM-FRV-23A
GAST 6AM-FRV-71
GAST 6AM-NRV-7A
GAST 6AM-NRV-7B
GAST 6AM-NRV-29A
GAST 6AM-NRV-11A
GAST 6AM-NRV-22A
GAST 6AM-ARV-54
GAST 6AM-ARV-55
GAST air motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GAST潤滑馬達6AM-ARV-55的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GAST products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
