ANCORP球閥E4200-QF50-AS技術參數
 | |

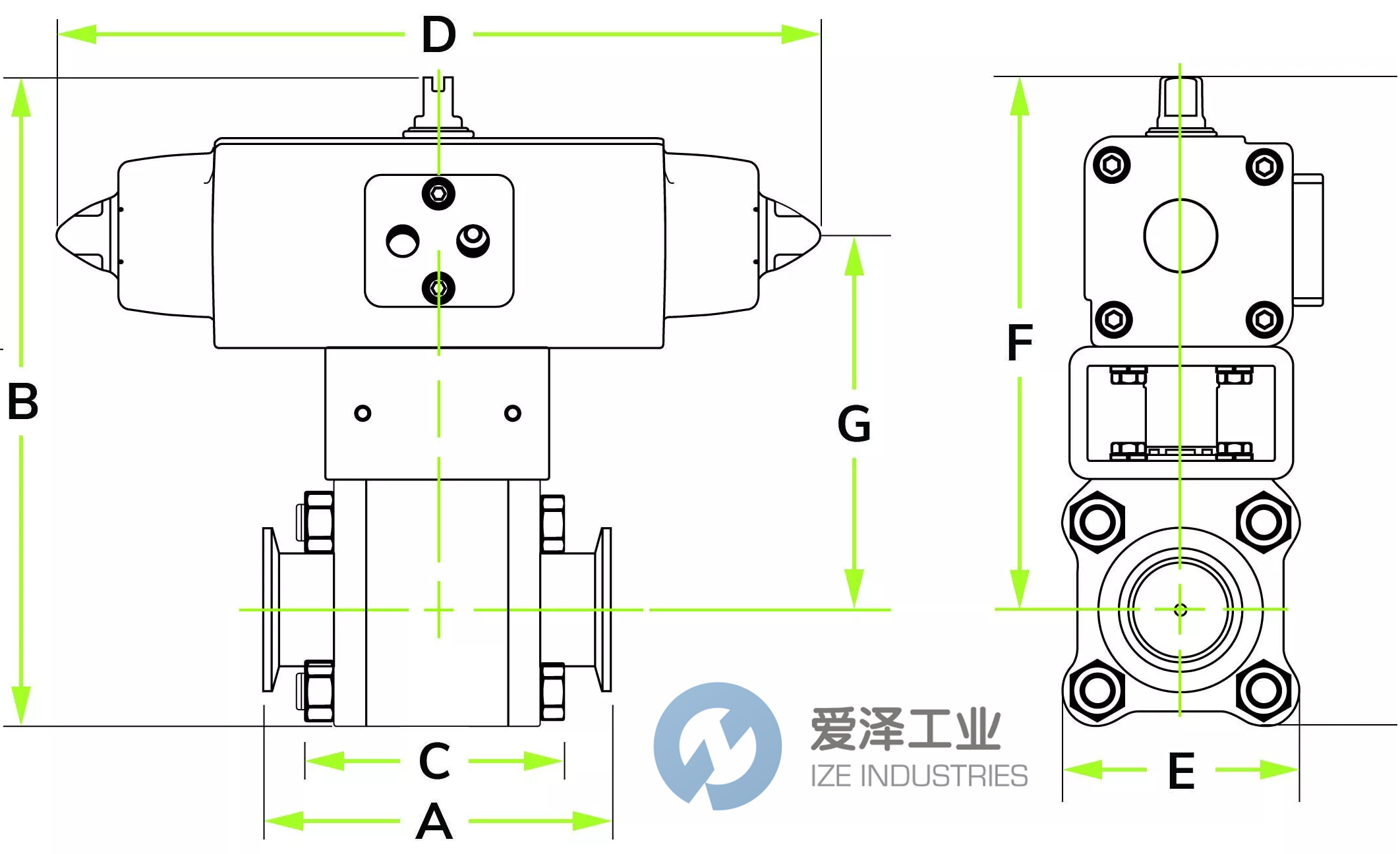

Attributes | |
A | 4.97 |
B | 9 |
C | 3.9 |
D | 10.2 |
E | 3.5 |
F | 7.2 |
G | 5.1 |
End Cap | QF50 |
Ball Size | 1.5 |
End Cap Tube Size | 2 in. O.D. |
Conductance (L/Sec) | 57 |

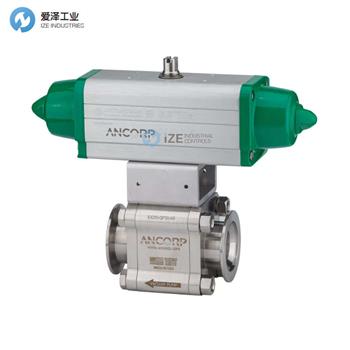

ANCORP球閥E4200-QF50-AS產品介紹
ANCORP 的球閥由閥體、閥桿、球和兩個由耐腐蝕 316L 不銹鋼加工而成的端蓋組成。氟橡膠用于將閥桿和端蓋與大氣密封，而 Teflon將冷流置于球周圍以在關閉時隔離過程。閥門通過 ? 圈手動或氣動方式打開和關閉，快速啟動。Teflon密封表面有助于防止其沉積，保持干凈的動態密封以防止因污染而發生故障。
特征
1×10 -8 托的真空等級
帶標準FKM的最高溫度-26°C至150°C（-15°F至302°F）
可選的O形圈和潤滑脂可實現更高的工作溫度。
由 316L 不鋒鋼制造
高電導；直流
防顆粒球/座椅設計延長了維護周期間的時間
“-AA”表示氣開、氣關；“-AS”表示氣開、彈窗關閉
80-120 psig 工作氣壓
ANCORP’s ball valves consist of a body, stem, ball, and two end caps machined from corrosive resistant 316L stainless steel. Fluoroelastomers are used to seal the stem and end caps from atmosphere while the Teflon? seats cold flow around the ball to isolate the process when closed. The valve is opened and closed manually or pneumatically by ? turn, quick actuation. The Teflon? sealing surface helps to protect it from deposition, maintaining a clean dynamic seal to prevent failure due to contamination.
Features
Vacuum rating of 1×10-8 torr
Max Temp w/Standard FKM -26°C to 150°C (-15°F to 302°F)
Higher operating temperatures are possible with alternate o-ring and grease options. Manufactured from 316L stainless steel
High conductance; straight through flow
Particulate resistant ball/seat design lengthens time between maintenance cycles
“-AA” for air-to-open, air-to-close; “-AS” for air-to-open, spring-to close
80-120 psig operating air pressure
ANCORP球閥其他常用型號：
ANCORP B4075-QF16
ANCORP B4100-QF25
ANCORP C4100-QF25
ANCORP C4150-QF40
ANCORP D4150-QF40
ANCORP E4200-QF50
ANCORP F4200-QF50
ANCORP E4200-QF50-AS
ANCORP Ball Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
