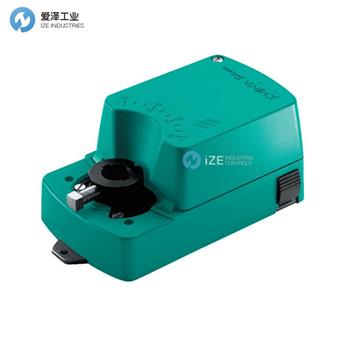

JOVENTA風閥執行器DMN1.2N規格描述
Specification | |
Actuator | DMN1.2N |
Torque | 4 Nm |
Damper area* | 0.8 m2 |
Running Time | 35 s |
Supply Voltage | 24 V AC/DC |
Frequency | 50-60 Hz |
Power Consumption | |
- Running | 2.5 W |
- At end position | 0.75 W |
Dimensioning | 3.5 V A / 2.5 A @ 2 msec |
Control Signal | DC 0...10 V |
Position Signal | DC 0...10 V |
Angle of rotation | |
- Working range | 90° (93° mech.) |
- Limitation | 0°...30° and 90°...60° |
Service lifetime | 60,000 rotations |
Noise level | 40 dB (A) |
Protection Class | II |
Degree of Protection | IP 42 |
Cable aperture connection | M16 x 1.5 |
Mode of Action Ambient conditions | Type 1 |
- Operating temperature | –20...+50 °C / IEC 721-3-3 |
- Storage temperature | –30...+60 °C / IEC 721-3-2 |
- Humidity | 5...95% r.F. |
Weight | 0.9 Kg |
Service | Maintenance-free |
Conformity | EMC Directive 2004/108/EC Low Voltage Directive 2006/95/EC |
JOVENTA風閥執行器DMN1.2N產品介紹
應用
Silence電動風門執行器系列已開發用于在通風和空調系統中運行中小型風門。
緊湊的設計和通用的適配器配合旋轉角度的限制，使該執行器具有高度的通用性。
特征
DC 0 ... 10 V控制
最多可并聯5個執行器
插入式接線端子連接
簡單的直接安裝即可通過通用適配器安裝到?6 mm至16 mm的軸上，也可以使用Z01DN適配器套件安裝在8,10,11和12 mm的方形軸上。
最小軸長45mm
旋轉方向可選
旋轉角度限制
手動釋放按鈕
終端位置自動關閉（過載開關）
終端位置節能
執行器配有1 m無鹵素電纜
Application
The Silence electric damper actuator series have been developed to operate small and medium air dampers in ventilation and air conditioning systems.
The compact design and universal adapter fitted with limitation of rotation angle make this actuator highly versatile.
Features
DC 0...10 V control
Up to 5 actuators in parallel operation possible
Plug-in terminal block connection
Simple direct mounting with universal adapter for fitting to ? 6 mm to 16 mm shaft or with Z01DN adapter kit for 8,10,11 and 12 mm square shaft.
45-mm min shaft length
Selectable direction of rotation
Limitation of rotation angle
Manual release button
Automatic shut-off at end position(overload switch)
Energy saving at end positions
Actuators available with 1 m halogen-free cable
JOVENTA風閥執行器DMN1.2N其他型號：
JOVENTA DAN1N
JOVENTA DAN1.SN
JOVENTA DMN1.2N
JOVENTA DAN2N
JOVENTA DAN2.SN
