SQUARE D浪涌保護裝置SDSA3650描述
Specifications | |
Main | |
Product | Surge protection device |
Range | Surgelogic |
Complementary | |
Surge Current | 40 kA per phase |
Voltage Rating | 600Y/347 V AC |
Number of Phases | 3 phase |
Wiring Configuration | 4-wire |
MCOV | 510 V |
Nominal Discharge Current | 10 kA |
SCCR | 200 kA |
Local Signalling | Status LED green normal operation |
Height | 3 in (76.20 mm) |
Width | 3.6 in (91.44 mm) |
Depth | 3.4 in (86.36 mm) |
cable length | 24 in (609.60 mm) |
Environment | |
Enclosure Rating | NEMA 4X |
Enclosure Material | Black Plastic |
Standards | UL 1449:ed. 4: type I |
Ambient Operating | 149 °F (65 °C) |
Ordering and shipping details | |
Category | 08462-SURGE PROTECTION SDSA |
Discount Schedule | DE1B |
GTIN | 7.85901E+11 |
Nbr. of units in pkg. | 1 |
Package weight(Lbs) | 12.48 oz (353.802 g) |
Returnability | Yes |
Country of origin | MX |
Packing Units | |
Unit Type of Package 1 | PCE |
Package 1 Height | 3.10 in (7.874 cm) |
Package 1 width | 3.90 in (9.906 cm) |
Package 1 Length | 5.00 in (12.7 cm) |
Unit Type of Package 2 | CAR |
Number of Units in Package 2 | 20 |
Package 2 Weight | 21.92 lb(US) (9.943 kg) |
Package 2 Height | 6.30 in (16.002 cm) |
Package 2 width | 13.60 in (34.544 cm) |
Package 2 Length | 20.50 in (52.07 cm) |
SQUARE D浪涌保護裝置SDSA3650產品介紹

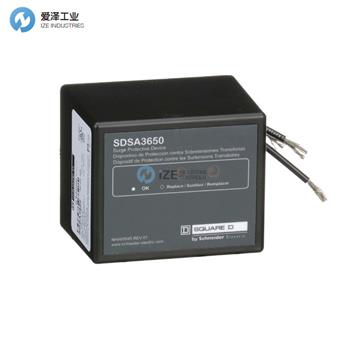

Surge protection device, Surgelogic, 40kA, 600Y/347VAC, 3 phase, 4 wire, NEMA 4X
浪涌保護裝置，Surgelogic，40kA，600Y/347VAC，3 相，4 線，NEMA 4X
SQUARE D浪涌保護裝置其他常用型號：
SQUARE D SDSA3650E
SQUARE D SDSA3650D
SQUARE D SDSA3650
SQUARE D SurSQUARE D protection device NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SQUARE D浪涌保護裝置SDSA3650的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SQUARE D products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
SQUARE D浪涌保護裝置SDSA3650技術參數
