IDEM安全開關HSM/HS-SS系列技術參數
Safety Classification & Reliability Data: | |
Mechanical Reliability B10d | 1.5 x 106 operations at 100mA load |
ISO 13849-1 | Up to PLe depending upon system architecture |
EN62061 | Up to SIL3 depending upon system architecture |
Safety Data – Annual Usage | 8 cycles per hour/24 hours per day/365 days MTTFd 356 years |
Utilization Category | AC15 A300 3A |
Thermal Current (lth) | 10A |
Overload protection fuse (fuse externally) | 10A. (FF) |
Rated Insulation/Withstand Voltages | 600VAC/2500VAC |
Actuator Rotation for Positive Opening | 6 degrees 0.5Nm (Type Zb contacts) |
Maximum Approach Withdrawal Speed | 600mm/s |
Body Material | Stainless Steel 316 (Mirror Polished Finish) or Die Cast (Black Plated Mirror Finish) |
Enclosure Protection | IP67 / IP69K |
Operating Temperature | -25C +80C |
Vibration | IEC 68-2-6 10-55Hz+1Hz Excursion: 0.35mm, 1 octave/min |
Conduit Entry | Various (see sales part numbers) |
Fixing | 7 x M5 |
Tightening Torque (all mounting bolts) | 4Nm |
Mounting Position | Any |
Pollution Degree | 3 |
Short Circuit Overload Protection | Fuse externally 10A (FF) |
Altitude | Max. Altitude 2000m |
Humidity | Relative Humidity 90% at 20 oC (Non-Condensing) |
IDEM安全開關HS-SS系列介紹

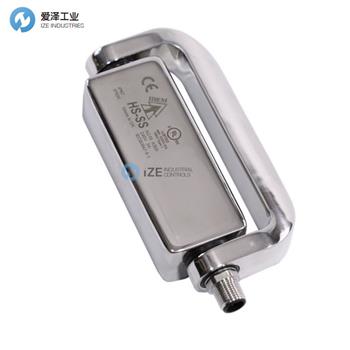

IDEM’s HS-SS Stainless Steel 316 Hinge Switch with a mirror polished finish has been designed to be mounted for interlock position sensing of hinged moving guards. Once fitted to the hinged axis of the machine guard door, they provide a robust hinge function in addition to interlock position sensing. Blank hinges are also available if your requirement is for 2 hinges per door.
The HS-SS is used to mount the machine guard door into the machine guard frame and contact blocks are available in slow make/break 3NC 1NO, or 2NC 2NO. They have positive opening contacts in accordance with IEC 60947-5-1 and after fitting the switch offers a very high degree of anti-tamper.
Features:
Housing: Mirror Polish (Ra4), 316 stainless steel
Axial Holding Force: 800N
Contacts: 3NC 1NO, or 2NC 2NO
Ingress Protection: IP69K
Operating Temperature: -25c to +80c
Connectivity: Pre-wired or M12 8-Pole Quick Connect
Mounting is achieved by fixing the switch from underneath for improved hygienic qualities. If you need front fixing, separate mounting bracket accessories can be purchased.
Blank hinges are also available if your requirement is for 2 hinges per door.
Left or right versions available
IDEM的HS-SS不銹鋼316鉸鏈開關具有鏡面拋光表面，設計用于安裝鉸鏈移動防護裝置的互鎖位置感應。一旦安裝到機器防護門的鉸鏈軸上，除了互鎖位置感應外，它們還提供強大的鉸鏈功能。如果您的要求是每扇門有2個鉸鏈，也可以使用空白鉸鏈。
HS-SS用于將機器防護門安裝到機器防護框架中，觸點塊可用于慢通/斷 3NC 1NO 或 2NC 2NO。它們具有符合 IEC 60947-5-1 的強制斷開觸點，安裝后開關提供了非常高的防篡改功能。
特征：
外殼：鏡面拋光 (Ra4)，316 不銹鋼
軸向保持力：800N
觸點：3NC 1NO 或 2NC 2NO
防護等級：IP69K
工作溫度：-25c 至 +80c
連接性：預接線或 M12 8 極快速連接
通過從下方固定開關來實現安裝，以提高衛生質量。如果您需要前部固定，可以購買單獨的安裝支架配件。
如果您的要求是每扇門有 2 個鉸鏈，也可以使用空白鉸鏈。
提供左側或右側版本
