THERMO RAMSEY傳感器20-59-NM-8M技術參數
To detect presence of product, high level or plugged transfer chutes |
Cast iron nickel chrome construction for standard applications (bulk sizle < 200 mm) |
Tilt angle:> 15° |
Length: 8 1/4" (21 cm) |
Diameter: 1 1/4" (3,175 cm) |
Protection degree: IP67 (NEMA 4X) |
Temperature Rating: -40°C ≤ Ta ≤ +60°C (-40°F ≤ Ta ≤ +140°F) |
Complete of 8 m (old 25 feet) of cable (2x1,5 mm2), hanger and two S-hooks |
Each tilt sensor must be directly connected to a dedicated control unit model 20-35NM (DIN, F or F-4X), that will power the probe and manage the contacts |
THERMO RAMSEY傳感器20系列介紹
堅固、耐磨的傾斜開關。
安裝簡單。
控制單元是固態的，印刷電路板結構。
可調整的時間延遲為10秒 - 防止誤跳閘。
控制單元標準 NEMA 4X 外殼（20-43 型）或不帶外殼（20-43-1 型）用于控制面板安裝。
性能在全球數千個應用中得到驗證。
探頭都包括安裝硬件。

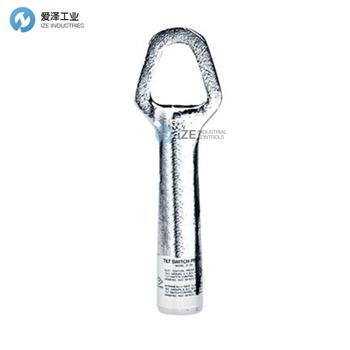

Rugged, abrasion-resistant tilt switch.
Simple installation.
Control unit is solid state, printed circuit board construction.
Adjustable time delay to 10 seconds - Prevents false trips.
Control unit standard NEMA 4X enclosure (Model 20-43) or without enclosure (Model 20-43-1) for control panel mounting.
Performance proven in thousands of applications throughout the world.
All probes include mounting hardware.
THERMO RAMSEY傳感器20其他常見型號：
THERMO RAMSEY 20-39
THERMO RAMSEY 20-31
THERMO RAMSEY 20-32
THERMO RAMSEY 20-33
THERMO RAMSEY 20-30-SS
THERMO RAMSEY 20-39B
THERMO RAMSEY 20-39C
THERMO RAMSEY 20-41
THERMO RAMSEY 20-39-8M
THERMO RAMSEY 20-39-8B
THERMO RAMSEY 20-59-NM-8M
THERMO RAMSEY 20-59-NM-25
THERMO RAMSEY sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于THERMO RAMSEY傳感器20-59-NM-8M的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for THERMO RAMSEY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
