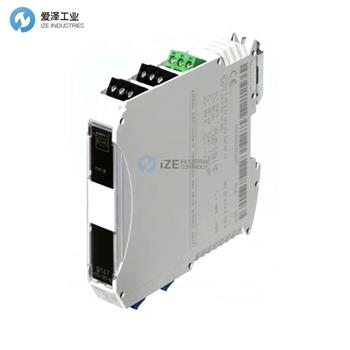

R STAHL隔離器9147/20-99-10s技術參數
Electrical Data | |
Number of channels | 2 |
LFD relay | No |
Operation indication | Green "PWR" LED |
Internal resistance Ri | 30 Ω |
Ambient Conditions | |
Ambient temperature °C | -20 °C ... +70 °C (Single device) |
Ambient temperature °F | -4°F ... +158°F (Single device) |
Storage temperature °C | -40 °C ... +80 °C |
Storage temperature °F | -40°F ... +176°F |
Max. relative humidity | 0.95 |
Use at the height of | < 2000 m |
Electromagnetic compatibility | Tested to the following standards and regulations: EN 61326- 1 For use in industrial areas; NAMUR NE 21 |
Mechanical Data | |
Degree of protection (IP) | IP30 |
Degree of protection (IP) terminals | IP20 |
Fire resistance (UL 94) | V0 |
Enclosure material | Polyamide |
Grid dimension | 17.6 mm |
Width | 17.6 mm |
Width, inches | 0.69 in |
Height | 114.5 mm |
Height in inches | 4.51 in |
Length | 108 mm |
Length in inches | 4.25 in |
Mounting depth in inches | 4.51 in |
Weight | 210 g |
Weight | 0.46 lb |
R STAHL隔離器9147系列介紹
9147 系列振動傳感器電源裝置將振動、加速度和速度傳感器連接到分析系統。測量信號在傳輸時是電隔離的。它們以高達 50 Hz 的頻率傳輸。
? 節省空間的雙通道版本可降低安裝成本
? 易于操作的旋轉開關使調整變得簡單
? 最高可用于 SIL 2 (IEC 61508)
9147 series vibration transducer power supply units connect vibration, acceleration and speed sensors to analytical systems. The measuring signals are galvanically separated when they are transmitted. They are transmitted at frequencies of up to 50 Hz.
? Space- saving two- channel variant reduces installation costs
? Easily accessible rotary switch makes adjustment simple
? Can be used up to SIL 2 (IEC 61508)
R STAHL隔離器9147系列其他常用型號：
R STAHL 9147/20-99-10k
R STAHL 9147/20-99-10s
R STAHL 9147/10-99-10k
R STAHL 9147/10-99-10s
