ABB火焰檢測系統FAU810規格描述
Flame Failure Relay Drop-Out | Configurable 0.2 to 4 seconds |
Flame Relay(s) | Three total, each with Form C contacts |
Flame Relay Contact Ratings | 250 Vac, 3A, 750 VA; 220Vdc, 300 ma, 66 watts |
Fault Relay Contact Ratings | 250 Vac, 3A, 750 VA; 220Vdc, 300 ma, 66 watts |
Analog Flame Signal Outputs | Two channels of 4-20 ma signals. Each channel may independently monitor Intensity, Frequency, Quality, or AC Amplitude |
Serial Data Communication | Two Galvanically isolated RS-485 interfaces (fully independent for redundancy) |
Serial Data Format | MODBUS (default), PROFIBUS DP-V1 (selectable) |
Self Checking Time Cycle | Electronics shall be checked every 0.1 seconds |
Ambient Temperature | 0° to 60° C (32°F to 140°F), 95% non-condensing atmosphere |
Case Dimensions | 13 cm height, 12 cm long, 11 cm wide |
Electrical Connections | Screw terminals, compression type, accepting 12 to 20 wire gage |
Module Mounting | Din Rail Mounted |
Power Consumption: | 4 watts Minimum, 10 watts Maximum, Typical 6 watts |
Stacking Limitation | 4 modules with power entry on the end module or 7 modules with power entry on the middle module |
Power supply voltage | 24V DC DC (-25%, +20% = 18 ÷ 29V ) |
Inrush current | 6A peak, 2ms settling time |
ABB火焰檢測系統FAU810介紹

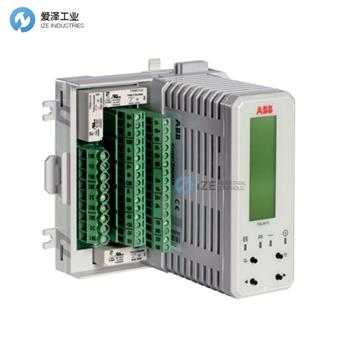

火焰分析儀FAU810是ABB新的前沿火焰分析儀。
FAU810從頭開始設計，具有較大的靈活性，可用性和可靠性。它利用現有的新技術來使火焰分析盡可能地具有成本效益，同時保持ABB堅如磐石的聲譽，成為業界可靠的儀器。
FAU810易于安裝和配置，易于操作，并使用冗余Profi總線DP-V1或標準Modbus接口，可輕松安全地進行數據交換和調整?？梢詫⑷魏晤愋偷腁BB火焰感應設備連接到FAU810。這使FAU810成為所有ABB Flame Scanner應用程序的標準模塊，并且是加裝現有安裝的解決方案。
它確定當前信號值是否在功能定義的編程極限范圍內。在FAU810中可以定義各種限制，以解決公用鍋爐或工業鍋爐中可能發生的任何情況。
The Flame Analysis Unit, or FAU810, is ABB’s latest leading-edge fl ame analysis device.
The FAU810 is designed from the ground up for maximum flexibility, usability and reliability. It takes advantage of the latest technologies available to make fl ame analysis as cost-effi cient as possible, while retaining ABB’s rock-solid reputation as the most reliable instruments in the industry.
The FAU810 is easy to install and confi gure, fl exible to operate, and uses redundant Profi bus DP-V1 or standard Modbus interfaces for easy and safe data exchange and tuning. You can connect any type of ABB Flame sensing device to the FAU810. This makes the FAU810 the standard module for all ABB Flame Scanner application and the preferred solution for retrofi tting existing installation.
It determines if the current signal value is within the programmed limits as defi ned by Functions. A variety of limits can be defi ned in the FAU810 to account for any situation that may occur in utility or industrial boilers.
FAU810規格
每個火焰分析單元均包含兩個獨立的通道。每個通道都可以接收和處理火焰探測器信號。兩個檢測器可以采用以下設計的任意組合：
? SF810火焰掃描儀頭
?所有DFS Flame掃描儀頭
?火焰棒（離子火焰監控）
FAU810 Specifications
Each Flame Analysis Unit consists of two independent channels. Each channel can receive and process a Flame Detector signal. The two Detectors may be in any combination of the following designs:
? SF810 Flame scanner heads
? All DFS Flame scanner heads
? Flame Rods (Ionic Flame Monitoring)
ABB火焰檢測系統FAU810其他常用型號：
ABB C10-12010
ABB FAU810
ABB C10-11010
ABB C10-11010-CI
