KROM SCHRODER控制閥RV系列產品參數
Specification | |
Environment | Gas type: natural gas, town gas, LPG (gaseous), biogas (max. 0.1 %-by-vol. H2S) and air. The gas must be clean and dry in all temperature conditions and must not contain condensate. |
Max. inlet pressure pu max | 150 to 1000 mbar |
Medium and ambient temperatures: | -20 to +60°C (-4 to +140°F). |
RV..V, RVS..V with optional Viton valve disc seal: | 0 to 60°C (32 to 140°F). |
Storage temperature | -20 to +40°C (-4 to +104°F). |
Mains voltage: | 230 V AC, -15/+10%, 50/60 Hz, |
Enclosure | IP 54 pursuant to IEC 592 |
Safety class | I. |
Cable cross-section | max. 2.5 mm2. |
Cable gland: | PG 13.5 – apart from RVS 232ML = PG 11, |
Closing time | < 1 s. |
Duty cycle: | 1 |
Electrical connection | According to the data table, the electrical power is identical when switching on and in continuous operation. |
Power factor of the solenoid coil: | cos φ = 1. |
Cable cross-section: | max. 1.5 mm2. |
Cable gland: | RV, RVS: 2 x M20, |
The following signal types are processed: | – 0 (4) to 20 mA, |
Input resistance: | 0 (4) to 20 mA: 50 ? (load impedance) |

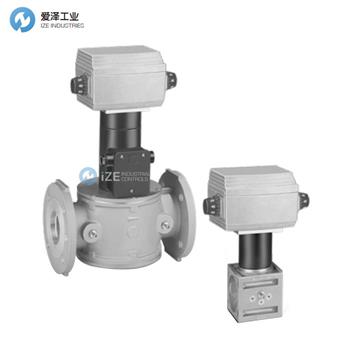

KROM SCHRODER控制閥RV系列產品介紹
控制閥RV設計用于調節流量，以調節燃氣和空氣設備上的受控燃燒過程，這些過程需要高達100：1的大控制比。它適用于電子或機械的氣體/空氣比率控制系統。
該閥可確保燃燒器容量的精確調節。
它由一個三點步進控制器來驅動，對于RV..E / RVS..E，則由一個連續信號（例如4 – 20 mA）來驅動。 RV..E / RVS..E具有電子定位控制，可確保較高的控制精度。
在整個控制范圍內，輸入信號與流量之間的比率在很大程度上是線性的。
最小和最大流速使用兩個無限可調的開關凸輪進行調節?？赏ㄟ^兩個浮動輔助開關檢查中間位置或激活外部設備。
The control valve RV is designed for regulating flow rates for modulating-controlled combustion processes on gas and air appliances which require a large control ratio of up to 100:1. It is suitable for use in electronic or mechanical gas/air ratio control systems.
The valve ensures exact adjustment of the burner capacity.
It is actuated by a three-point step controller or, in the case of the RV..E/RVS..E, by a continuous signal (e.g. 4 – 20 mA). The RV..E/RVS..E features electronic positioning control which ensures high control accuracy.
The ratio between the input signal and the flow rate is largely linear over the entire control range.
The minimum and maximum flow rates are adjusted using two infinitely adjustable switching cams. Intermediate positions can be checked or external devices can be activated via two floating auxiliary switches.
KROM SCHRODER控制閥RV系列其他常見型號：
KROM SCHRODER RV2/W
KROM SCHRODER RV2/X
KROM SCHRODER RV40/K
KROM SCHRODER RV40/L
KROM SCHRODER RV50/K
KROM SCHRODER RV50/L
KROM SCHRODER RV50/M
KROM SCHRODER RV65/L
KROM SCHRODER RV80/M
KROM SCHRODER RV65/LF05T60E
