IBEDA阻火器GRV32選型介紹
Technical Data: | ||||||
Safety device GRV according to DIN EN ISO 5175-2: not flashback resistant, not flashback proof | ||||||
Gas types: | Industrial ? | Hydrogen (H) | NaturalGas | Propane (P) | Oxygen (O) | Com |
Working pressure: | 2,5 MPa | |||||
Cracking pressure: | 4 to 6 mbar position-independent | |||||
Gas temperature: | -20°C up to +70°C ( Oxygen -20°C up to +50°C) | |||||
Ambient temperature: | -20°C up to +70°C | |||||
Threads: | G1 1/4RH F/F3) | |||||
Measure and weight: | diameter: | length: | weight: | |||
G1 1/4 - 1 1/4NPT: | 60 mm | 100 mm | 1,2 kg | |||
G1 - 1NPT: | 60 mm | 95 mm | 1,1 kg | |||
Application: | Heating burner, gas mixing- and control systems, applications according to EN 746-2 | |||||
IBEDA阻火器GRV系列介紹

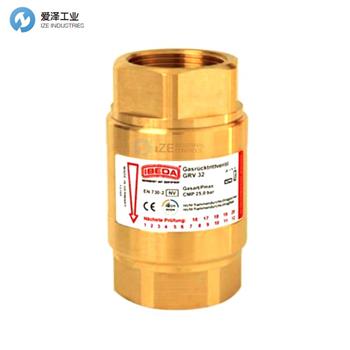

The safety device (non-return valve / check valve) GRV32:
Type GRV32 for protection of pipelines, tapping points and equipment
The safety device GRV32:
? avoids dangerous gas mixtures by a gas non-return valve (NV)
? a dust filter protects the gas non-return valve against contamination
? every safety device is 100% tested
? all metal components in brass 2.0401 / spring 1.4310
Safety elements of the IBEDA non-return valve GRV32:
? NV Gas non-return valve
Additional features:
? DF Dust filter
安全裝置（單向閥/止回閥）GRV32：
GRV32型用于保護管道，分接點和設備
安全裝置GRV32：
?通過氣體止回閥（NV）避免危險的氣體混合物
?灰塵過濾器可保護氣體止回閥不受污染
?每個安全裝置均經過100％測試
?黃銅中的所有金屬組件2.0401 /彈簧1.4310
IBEDA止回閥GRV32的安全元件：
?NV氣體止回閥
附加功能：
?DF灰塵過濾器
IBEDA阻火器GRV系列其他常用型號：
IBEDA GRV 25
IBEDA GRV 32
IBEDA GRV 50
IBEDA GRV 25-VA
IBEDA GRV 32-VA
IBEDA GRV 50-VA
IBEDA GAS NON-RETURN VALVES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于IBEDA阻火器GRV32的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for IBEDA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
IBEDA阻火器GRV32參數介紹
