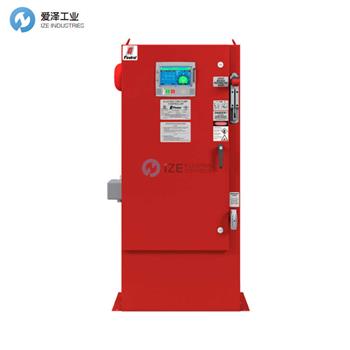

FIRETROL控制器FTA1300-AM75FZ技術參數
Code | FTA1300-AM75FZ |
Series | [FTA] |
Starting Method | [1300] Wye-delta (star-delta), open transition |
Start/Stop Options | [A] Automatic/Manual start with manual stop only (default). Field configurable to automatic start with timed permissive stop after minimum run time and manual start with manual stop only. |
Short Circuit Current Rating | [M] Standard, 100kA |
Horsepower Rating | [75] 75 HP |
Three Phase Voltage | [FZ] 380 Volt, 50 Hertz |
FIRETROL控制器FTA1300系列介紹
Firetrol? FTA1300 星形-三角形、開路轉換啟動消防泵控制器與三角形繞線鼠籠電動機配合使用。FTA1300 控制器屬于開路轉換類型，在從啟動到運行的轉換過程中，電動機電路打開?？刂破鞅O(jiān)控、顯示和記錄消防泵系統信息。通過壓力開關、啟動按鈕或雨淋閥觸點啟動控制器，可關閉將電動機連接到星形連接線路的啟動接觸器。電動機將吸收約 33% 的正常浪涌電流，并產生約 33% 的正常啟動扭矩。經過一段時間延遲后，電動機將自動重新連接成三角形，向電動機繞組施加全電壓。這些控制器特別推薦用于發電機組
Firetrol? FTA1300 Wye-Delta, Open Transition Starting Fire Pump Controllers are used with delta-wound squirrel cage motors. FTA1300 controllers are of the open circuit transition type in which the motor circuit is opened during the transition from start to run. The controller monitors, displays and records fire pump system information.Actuating the controller by the pressure switch, START push-button or deluge valve contact closes the start contactor connecting the mo-tor to the line in the wye connection. The motor will draw approximately 33% of its normal inrush current and develop approximately 33% of its normal starting torque. After a time delay, the motor is automatically reconnected in delta, applying full voltage to the motor windings. These controllers are recommended especially for use with generator sets

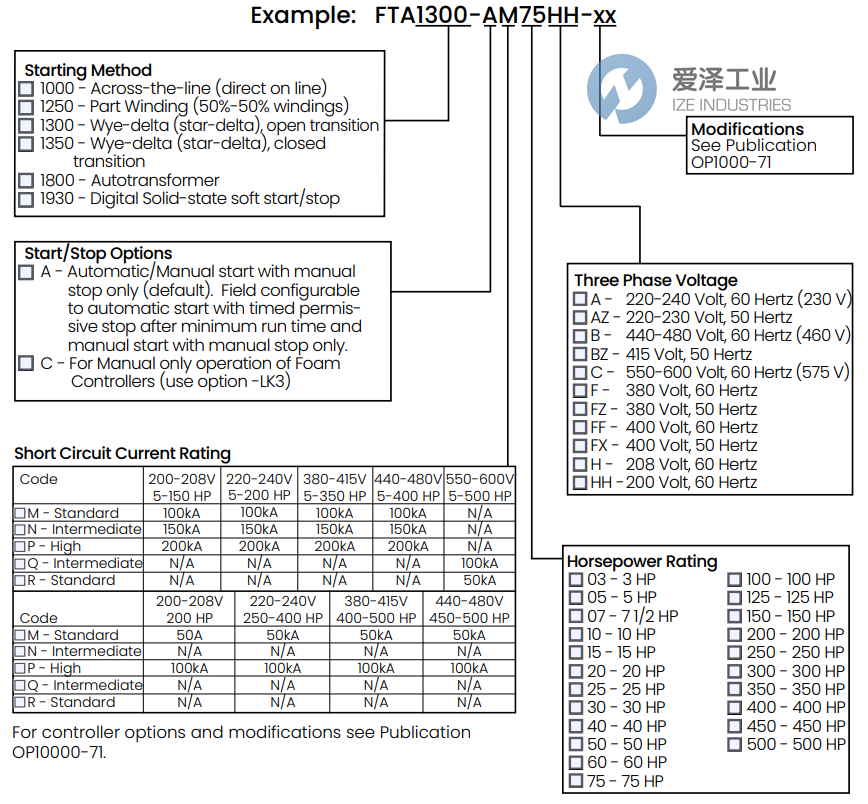

FIRETROL控制器FTA系列選型
FIRETROL控制器FTA系列其他常用型號：
FIRETROL FTA1300-AM75FZ
FIRETROL FTA1300-AM250FZ
FIRETROL FTA1300-AD400F
FIRETROL FTA1300-AM250B
FIRETROL FTA1300-AM200B
FIRETROL FTA1300-AM150B
FIRETROL FTA1300-AM40A-G
