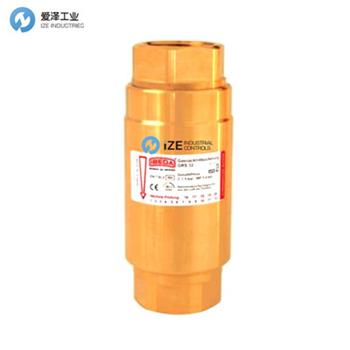

IBEDA阻火器GRS32規格描述
Technical Data: | |||||
Safety device GRS according to DIN EN ISO 5175-2: Flashback resistant if compressed air is used as oxidant. | |||||
Gas types : | Industrial gas C | Hydrogen (H) | Natural Gas (Methane) (M) | Propane (P) | cleaned Bio gas (M) |
Working pressure: | 0,15 Mpa 1,5 bar | 0,5 Mpa 5 bar | 0,5 Mpa 5 bar | ||
Cracking pressure: | 4 to 6 mbar position-independent | ||||
Gas temperature: | -20°C bis +70°C ( Sauerstoff -20°C bis +50°C) | ||||
Ambient temperature: | -20°C bis +70°C | ||||
Threads: DIN ISO 228 ANSI/ASME B1.20.1 | G1 1/4RH F/F3) G1RH F/F3) 1 1/4NPT F/F3) 1NPT F/F3) | ||||
Measure and weight: | diameter: | length: | weight: | ||
G1 1/4 - 1 1/4NPT: | 65 mm | 157 mm | 2,5 kg | ||
G1 - 1NPT: | 65 mm | 150 mm | 2,5 kg | ||
pplication: | Heating burner, gas mixing- and control systems, applications according to EN 746-2 | ||||
IBEDA阻火器GRS32產品特性
愛澤工業(IZE INDUSTRIES)特價經銷、常用IBEDA阻火器型號：
IBEDA GRS 25
IBEDA GRS 32
IBEDA GRS 50
IBEDA GRS 25-VA
IBEDA GRS 32-VA
IBEDA GRS 50-VA
IBEDA GAS NON-RETURN VALVES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于IBEDA阻火器GRS32的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for IBEDA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
IBEDA阻火器GRS32參數介紹
