SENSATA BEI模塊60001系列技術參數
Output Code Format From Encoder | Dual Channel in quadrature with index and complements. Data lines are designated A, B, Z, A/, B/, Z/ at the module |
Output Signal Type From Encoder | Differential line driver (Use Connection Instructions #1) |
Output Signal Voltage Level From Encoder | 5 VDC (TTL, RS422 compatible, line driver) |
Frequency Response of Optical Isolator | 1 MHz, maximum |
Power Requirements For Optical Isolator | 5-28 VDC ±5%, 75mA plus load current |
Optical Isolator Output Options | 28V/V Line Driver, 100mA source/sink, Vout = Vin |
Protection Level | Supply lines protected against over voltage to 60 volts and reverse voltage |
Tristate Outputs | Available as –S Special Feature |

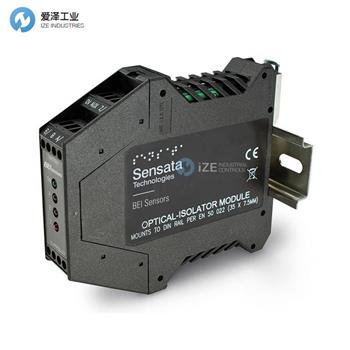

SENSATA BEI模塊60001系列介紹及選型
This is a versatile interface between an incremental encoder and receiving electronics. It accepts single ended or differential inputs and provides single ended or differential outputs in either an open collector or line driver configuration. It accommodates all standard operating voltages from 5 to 28 VDC. Up to eight Optical Isolator Modules can be daisy-chained to provide multiple, simultaneous outputs to controllers or PLC’s. This Optical Isolator can help clean up noisy signals by converting to a different line driver output. It has a 1 MHz throughput capability and can be used wherever a fast, optically isolated interface is required.
POWER : The optical isolator can accommodate standard operating voltages from 5 to 28 VDC. It should never be connected directly to AC power
mains. The module draws approximately 75 mA and a green LED indicates the unit is powered. The optical isolator module does not provide power to the encoder. Any encoders used in conjunction with this module must be connected to their own power.
SIGNAL : Specifying an optical isolator module requires knowledge of three system parameters: the DC supply voltage available in the system; the
encoder output type (logic levels and driver type); and the input signal specifications of the receiving electronics.
這是增量編碼器和接收電子設備之間的通用接口。它接受單端或差分輸入，并以集電極開路或線路驅動器配置提供單端或差分輸出。它可以承受5到28 VDC的所有標準工作電壓?？梢跃栈ㄦ湻绞竭B接多達八個光學隔離器模塊，以向控制器或PLC提供多個同時輸出。該光隔離器可通過轉換為不同的線路驅動器輸出來幫助清除噪聲信號。它具有1 MHz的吞吐能力，可在需要快速，光隔離接口的任何地方使用。
電源：光電隔離器可適應5到28 VDC的標準工作電壓。切勿直接將其連接到交流電源
電源。該模塊消耗約75 mA電流，并且綠色LED指示設備已通電。光學隔離器模塊不向編碼器供電。與此模塊結合使用的任何編碼器都必須連接到自己的電源上。
信號：指定光隔離器模塊需要了解以下三個系統參數：系統中可用的直流電源電壓；的編碼器輸出類型（邏輯電平和驅動器類型）；以及接收電子設備的輸入信號規格。

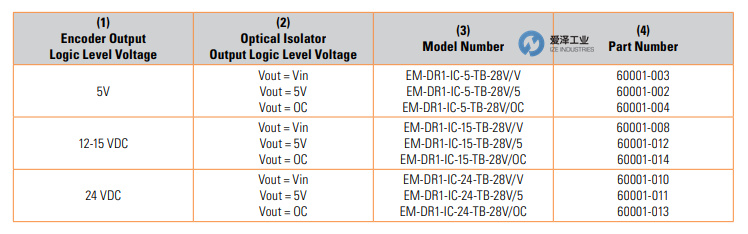

SENSATA BEI模塊60001系列其他常見型號：
SENSATA BEI EM-DR1-lC-5-TB-28V/V 60001-003
SENSATA BEI EM-DR1-IC-5-TB-28V/5 60001-002
SENSATA BEI EM-DR1-IC-5-TB-28V/0C 60001-004
SENSATA BEI EM-DR1-IC-15-TB-28V/V 60001-008
SENSATA BEI EM-DR1-IC-15-TB-28V/5 60001-012
SENSATA BEI EM-DR1-IC-15-TB-28V/OC 60001-014
SENSATA BEI EM-DR1-IC-24-TB-28V/V 60001-010
SENSATA BEI EM-DR1-IC-24-TB -28V/5 60001-011
SENSATA BEI EM-DR1-IC-24-TB-28V/OC 60001-013
