FEIG讀卡器ID CPR40.30-A技術參數
Technical specifications | |
Dimensions (w x h x d) | 144 mm x 84 mm x 18 mm |
Weight | approx. 260 g |
Housing | Plastic (ASA) / Acrylic glass |
Color | white / black |
Protection class | IP42 |
RFID Interface | ISO 14443-A/-B (106 ... 848 kBit/s) |
Operating frequency | 13.56 MHz |
Transmitting power | 100 mW |
MTBF | 500,000 h |
Supply voltage | 5 V DC ± 10 % ripple |
Current consumption | max. 140 mA |
Antenna | integrated |
Interface | RS232 (4,800 up to 230,400 Baud) |
Indicators, optical | 2 LED (green / blue) |
Contact interface | ISO 7816 |
Operation modes | Polling-Mode, Scan-Mode |
Supported transponders | mifare classic, mifare UltraLight, mifare DESFire, mifare PLUS, mifare UltraLight C, my-d move, JewelTM, FeliCa, NTAG, mifare / NTAG Ev2 Crypto, NFC Devices in Card Emulation Mode (Tag Type 1 ... 4) |
Software development kits | Windows (C++, .NET, Java), LINUX (C++, Java), Raspberry Pi |
USB driver, PC / SC driver | Windows Server 2012 and 2016, Windows 7, 8 and 10; 32 / 64 Bit |
Temperature range operation | ?20 °C up to +60 °C |
Temperature range storage | ?40 °C up to +85 °C |
Relative air humidity | max. 95 % (non-condensing) |
FEIG讀卡器ID CPR40.30-A產品介紹
桌讀卡器
桌面讀卡器 ID CPR40.30-A 旨在與符合 ISO 14443-A 和 ISO 14443-B 標準的常見傳輸器以及符合 ISO 18092 的 NFC 設備進行非接觸式數據交換。它非常適合多種桌面應用，如電子票務、電子文件、忠誠卡或公共交通。
“SoftCrypto”和“SAMCrypto 高級”功能提供了一個便捷快速的接口，以訪問 mifare DESFire EV1、mifare PLUS 和 mifare Ultralight C 的加密數據。
產品
特殊功能：
桌面讀卡器，配備 RS232 接口，可在辦公室或銷售點使用
符合 ISO 14443-A 和 -B 標準
支持 NFC 應用
對 mifare DESFire EV1 和 mifare PLUS 提供高級支持
ISO 主機或 PC / SC 驅動程序
應用領域：
電子支付
客戶忠誠卡系統
票務系統
Desktop Reader

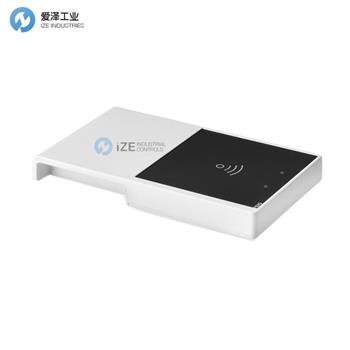

Desktop reader ID CPR40.30-A is designed for contactless data exchange with common transponders according to ISO14443-A and ISO14443-B as well as NFC devices according to ISO 18092. It is ideally suited for several desktop applications just like eTicketing, eDocument, loyality cards or public transport.
The functions “SoftCrypto” and “SAMCrypto high level” offer an comfortable and fast interface for access to encrypted data of mifare DESFire EV1, mifare PLUS and mifare Ultralight C.
Product description
Special Features:
Desktop Reader with RS232 interface to be used in offices or at the PoS
ISO 14443-A & -B
Supports NFC applications
High level support for mifare DESFire EV1 and mifare PLUS
ISO Host or PC / SC Driver
Fields of application:
ePayment
Loyalty Card systems
Ticketing
