SENECA網關Z-PASS2-RT-4G技術參數
TECHNICAL DATA | |
Power supply | 11..40 Vdc |
Max. power consumption | 11 W |
Max insulation | 1.5 kVac |
LED status indicators | Power supply |
Protection class | IP20 |
Connections | 3.5 mm pitch removable terminal block, cable cross-section 1.5 mm2 |
Flash Memory (data) | ≥4 GB |
RAM | 512 MB |
Slot for SD card | Yes Max 32GB |
I/O channels | Nr. 6DI/DO configurable |
Operating temperature | -25..+65 °C |
Dimensions (lxhxp) | 35 x 102.5 111 mm |
Weight | 240 g approx. |
Case | PA6 glass fiber reinforced |
Installation | For 35 mm DIN rail IEC EN 60715 |
Certifications | CE, UKCA |

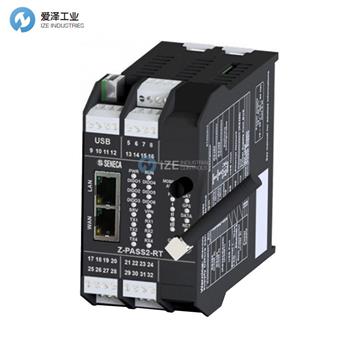

SENECA網關Z-PASS2-RT產品介紹
Z-PASS2-RT 是一款高度可靠且安全的設備，旨在處理幾乎無限數量的客戶端節點。該設備具有 2 個模擬輸入和 6 個可配置的通用數字 (DI/DO) 通道，提供無與倫比的多功能性。Z-PASS2-RT 具有 2 個快速以太網端口（1 個 LAN 端口、1 個 WAN 端口）、3 個串行端口和 1 個 USB 主機 2.0 端口，可提供廣泛的連接選項。此外，Z-PASS2-RT 設備還配備集成的 4G/LTE 調制解調器，可實現更加強大和可靠的連接。Z-PASS2-RT 支持多種協議，可確保與第三方系統完全集成并實現實時通信。
Z-PASS2-RT is a state-of-the-art, highly reliable, and secure device designed to handle a virtually unlimited number of client nodes. This device features 2 analog inputs and 6 configurable general-purpose digital (DI/DO) channels, providing unparalleled versatility. With 2 Fast Ethernet ports (1 LAN port, 1 WAN port), 3 serial ports, and 1 USB host 2.0 port, Z-PASS2-RT offers a wide range of connectivity options. In addition, the Z-PASS2-RT device comes with an integrated 4G/LTE modem for even more robust and reliable connectivity. Z-PASS2-RT supports a wide range of protocols ensuring full integration with third-party systems and enabling real-time communication via.
SENECA網關其他常用型號：
SENECA Z-PASS2-RT-4G-S
SENECA Z-PASS2-RT-4G-E
SENECA Z-PASS2-RT
SENECA Gateway NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SENECA網關Z-PASS2-RT-4G-S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SENECA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
