FACTS ENGINEERING輸出模塊F2-08TR技術參數
Outputs per Module | 8 |
Outputs Points Consumed | 8 |
Commons per Module | 2 (isolated), 4-pts. per common |
Output Type | 8, Form A (SPST normally open) |
Operating Voltage | 7A @ 12-28 VDC, 12-250 VAC; |
Peak Voltage | 150VDC, 265VAC |
ON Voltage Drop | N/A |
AC Frequency | 47 to 63 Hz |
Minimum Load Current | 10mA @ 12 VDC |
Max Load Current (resistive) | 10A/point 3 (subject to derating) |
Max Leakage Current | N/A |
Max Inrush Current | 12A |
Base Power Required 5VDC | 670mA |
OFF to ON Response | 15ms (typical) |
ON to OFF Response | 5ms (typical) |
Terminal Type (included) | Removable; D2-8IOCON |
Status Indicator | Logic side |
Weight | 5.5 oz. (156g) |
FACTS ENGINEERING輸出模塊F2-08TR產品介紹
DirectLOGIC DL205 繼電器輸出模塊，8 點，12-24 VDC/12-240 VAC，(8) A 型 (SPST) 無抑制，2 個隔離公共點，每個公共點 4 個點，10A/公共點. 包括可拆卸接線端子。

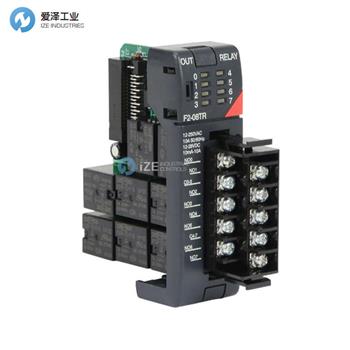

DirectLOGIC DL205 relay output module, 8-point, 12-24 VDC/12-240 VAC, (8) Form A (SPST) no-suppression, 2 isolated common(s), 4 point(s) per common, 10A/common. Removable terminal block included.
FACTS ENGINEERING輸出模塊其他常用型號：
FACTS ENGINEERING D4-16TR
FACTS ENGINEERING F4-08TRS-2
FACTS ENGINEERING F4-08TRS-1
FACTS ENGINEERING D4-08TR
FACTS ENGINEERING F3-08TRS-2
FACTS ENGINEERING F3-08TRS-1
FACTS ENGINEERING D2-08CDR
FACTS ENGINEERING D2-12TR
FACTS ENGINEERING F2-08TRS
FACTS ENGINEERING F2-08TR
FACTS ENGINEERING D2-08TR
FACTS ENGINEERING D2-04TRS
FACTS ENGINEERING D0-08TR
FACTS ENGINEERING F0-04TRS
