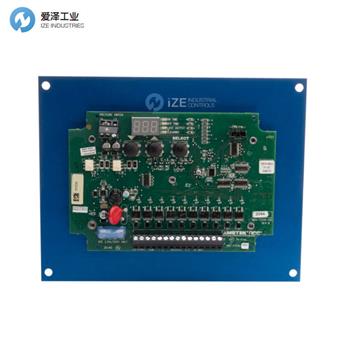

AMETEK電路板DNC-T2010-BDC/RBDC技術參數
SPECIFICATIONS | |
INPUT | |
Input Voltage: | 12 to 24 VDC ±20% |
Power Consumption: | 3.5 W max plus load |
Circuit Protection: | 3.15 A fast-acting fuse and 9 J metal-oxide varistor at input |
OUTPUT | |
Output: | FET, 3 A max, resistive load |
Off State Leakage: | 1μA max |
On State Voltage Drop: | 0.18 V max |
ENVIRONMENTAL | |
Operating Temperature: | -40° to 150°F (-40 to 66°C) Conformally coated with RTV to protect against moisture, corrosion, and vibration |
DISPLAY | |
Display: | 3 digit, 7 segment, green LED |
Indicator LEDs: | 5 green SMT (power, cleaning, on time, off time, last output) |
TIME DELAY | |
On Time: | 50 ms to 600 sec |
Off Time: | 1 to 999 sec |
Resolution: | 10 ms (50 ms to 10 sec), |
Accuracy and Repeatability: | ±3% over temperature and voltage range |
Default Settings: | On Time: 50 ms |
AMETEK電路板DNC-T2010-RBDC產品介紹
NCC 除塵器控制器、直流輸入、袋式除塵器脈沖清潔、通用電壓輸入 12 至 24 VDC 50/60 Hz
特征
?通用電壓輸入：12 至 24 VDC 50/60 Hz
?先進的表面貼裝元件技術：運行極其可靠、無故障
?數字微處理器控制電路：用于精確的脈沖定時
?非易失性存儲器：用于保留已編程的設置
?3 位 7 段數字顯示屏：方便查看控制器操作
?輕松編程：通過鍵盤設置開/關時間和最后輸出
?占地面積小
?所有應用的時間范圍：開啟時間：50 毫秒至 600 秒；關閉時間：1 至 999 秒
?2 種操作模式：可連續操作或通過外部壓力開關按需操作
?手指安全端接：可靠的電氣連接和更高的安全性
?RoHS 結構：適合全球應用
?配備金屬底盤：可直接安裝在 NEMA 4 盒中
?提供改裝型號：可直接替換之前的產品
NCC Dust Collector Controls, DC Input, Pulse Cleaning of Bag House Dust Collector, Universal voltage input 12 to 24 VDC 50/60 Hz
FEATURES
?Universal voltage input: 12 to 24 VDC 50/60 Hz
?Advanced surface mount component technology: extremely reliable and trouble-free operation
?Digital microprocessor-controlled circuitry: for precise pulse timing
?Non-volatile memory: for retaining programmed settings
?3-digit, 7-segment numeric display: for ease of viewing controller operation
?Easily programmable: on/off times and last output used via keypad
?Small footprint
?Time ranges for all applications: On time: 50 ms to 600 sec; Off time: 1 to 999 sec
?2 modes of operation: can be operated continuously or on demand via an external pressure switch
?Finger safe terminations: reliable electrical connections and increased safety
?RoHS construction: suited for global applications
?Supplied on metal chassis: for mounting directly in a NEMA 4 box
?Retrofit models available: for direct drop-in replacement of the former product
AMETEK電路板DNC-T210系列其他常用型號：
AMETEK DNC-T2010-RBDC
AMETEK DNC-T2010-BDC
AMETEK DNC-T2010-R20
AMETEK DNC-T2010-020
