ARIS電動執行器Nano+L系列技術參數
TECHNICAL DATA | |
Motor | AC:Synchronous motor, short-circuit proof |
Protection class | IP 65 (optional IP 66) |
Ambient temperature | -15...+60。C/optional -40...+.0。C (with PMR: 0...+60。C) |
Housing | Die cast aluminum (EN AC-44200) powder-coated |
Gear | Metal |
Cover | Aluminum EN AW-6060 T6 / powder-coated |
Shaft | 1.4021 |
Position indicator | optional |
Power supply | AC:230 V AC (optional 115 V AC/24 V AC) |
Additional switches | 2 or 4 pieces (optional) |
Potentiometer | optional |
Travel | 10...330° (optional Muli Turm) |
Duty cycle | 1 |
Connection | 3 cable glands M16x1,5 |
Travel cutoff | Switching cams/Micro switches |
Maintenance | Lfetime lubrication (maintenance-free) |
Control | AC:3-point-step |
ARIS Stellantriebe電動執行器Nano+系列介紹
Nano+ 以現代設計提供經典驅動技術。經典的驅動系統由電機-變速箱組合和由開關凸輪和微動開關組成的關斷系統組成，至今仍然有效。
高度可調節的粉末涂層鋁罩與粉末涂層基本外殼相結合，即使在惡劣的工業環境中也能確保無憂使用。此外，可固定凸輪確保即使在強烈振動的情況下也能在設定位置安全關閉。高度可調節的金屬罩允許多種附加選項，從多圈應用到具有高扭矩的快速響應時間和直流變體的故障安全功能。
The Nano+ offers classic drive technology in a modern design. The classic drive system, consisting of a motor-gearbox combination and a switch-off system consisting of switching cams and microswitches, is still valid today.
A height-adjustable and powder-coated aluminum hood in combination with the powder-coated basic housing also ensure a worry-free use even in the harshest industrial environment. In addition, fixable cams ensure a safe switch-off in the set position even in the case of strong vibrations. The height-adjustable metal hood allows a multitude of additional options ranging from multiturn applications to fast response times with high torque and fail-safe function for the DC variant.

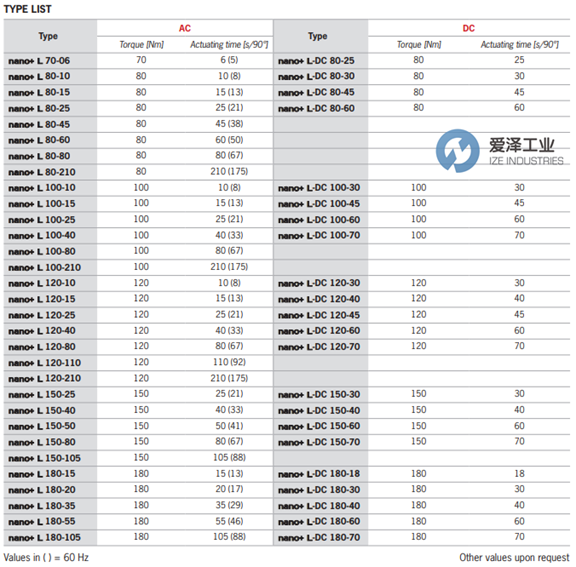

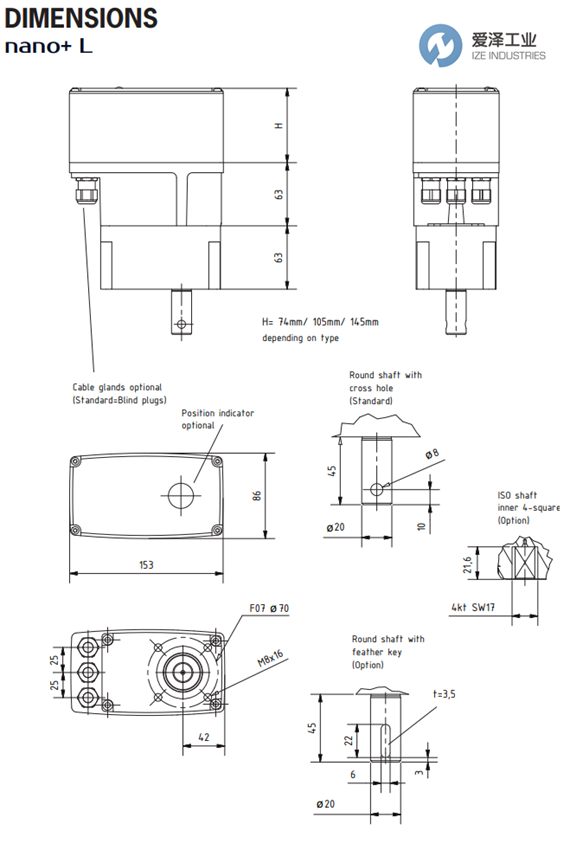

ARIS Stellantriebe電動執行器Nano+L系列尺寸圖及選型
ARIS Stellantriebe電動執行器Nano+L系列其他常用型號：
ARIS Stellantriebe nano+ L 70-06
ARIS Stellantriebe nano+ L 80-10
ARIS Stellantriebe nano+ L 80-15
ARIS Stellantriebe nano+ L 80-25
ARIS Stellantriebe nano+ L 80-45
ARIS Stellantriebe nano+ L 80-60
ARIS Stellantriebe nano+ L 80-80
ARIS Stellantriebe nano+ L 80-210
ARIS Stellantriebe nano+ L 100-10
ARIS Stellantriebe nano+ L 100-15
ARIS Stellantriebe nano+ L 100-25
ARIS Stellantriebe nano+ L 100-40
ARIS Stellantriebe nano+ L 100-80
ARIS Stellantriebe nano+ L 100-210
ARIS Stellantriebe nano+ L 120-10
ARIS Stellantriebe nano+ L 120-15
ARIS Stellantriebe nano+ L 120-25
ARIS Stellantriebe nano+ L 120-40
ARIS Stellantriebe nano+ L 120-80
ARIS Stellantriebe nano+ L 120-110
ARIS Stellantriebe nano+ L 120-210
ARIS Stellantriebe nano+ L 1 50-25
ARIS Stellantriebe nano+ L 150-40
ARIS Stellantriebe nano+ L 150-50
ARIS Stellantriebe nano+ L 150-80
ARIS Stellantriebe nano+ L 150-105
ARIS Stellantriebe nano+ L 180-15
ARIS Stellantriebe nano+ L 180-20
ARIS Stellantriebe nano+ L 180-35
ARIS Stellantriebe nano+ L 180-55
ARIS Stellantriebe nano+ L 180-105
