ABB變送器PGS100.LS9A1APYUHD4E9LTSM5規格描述
PGS100 |
L - Sensor Range : 12.5 and 250 kPa (125 and 2500 mbar, 50 and 1000 in. H2O) |
S9 - Maximum working pressure : Standard by design according to sensor range |
A - Diaphragm material : AISI 316L ss |
1 - Fill Fluid : Silicone oil |
A - Process Connection Material : AISI 316L ss |
P - Process Connection Size : Front bonded G 1/2 in |
Y - Bolts and Gaskets : None |
U - Housing Material / Electrical Connection : AISI 316L ss - M16 x 1.5 |
H - Protocol/Output : HART / 4 to 20 mA (including Easy Set up) |
D4 - Display : Backlit glass touch LCD display with 2-button keypad |
E9 - Extended Performance : ± 0,10% extended Base accuracy |
LTS - Labels : Label and HMI visualization in Chinese |
M5 - Manuals : English |
ABB壓力變送器PGS100系列介紹

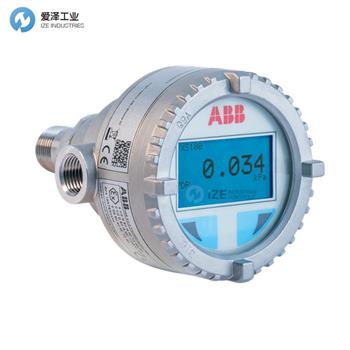

Model PGS100 is the compact, reliable, essential gauge pressure transmitter suitable for liquid, gas or steam applications. It is a straightforward and robust device designed for rapid delivery and easy installation and use. Thanks to its rugged design offering high resistance in even the most demanding environments, it is a competitive solution for most applications, including ones in hazardous areas.
PGS100 is the new gauge pressure transmitter from ABB, designed to fit markets with standard specifications but subject to fast-to-serve dynamics.
Its compact stainless steel housing grants robustness, resistance to humidity and vibration, while incorporating a new high visibility display with backlight option. Easy of use of the new touch HMI is enhanced by the Easy Set up feature, a firmware option to effortlessly configure device parameters from the display itself.
ABB's unique technologies like Diaflex (anti-abrasion) or H-Shield (anti hydrogen permeation) come handy if applications demand more.
PGS100 offers integral process connections to be combined with a wide selection of adapters and flanges to ensure mechanical fitting to any process point.
PGS100 型是緊湊、可靠的表壓變送器，適用于液體、氣體或蒸汽應用。它是一種簡單而堅固的設備，專為快速交付和易于安裝和使用而設計。由于其堅固的設計即使在最苛刻的環境中也能提供高抵抗力，因此它是大多數應用的具有競爭力的解決方案，包括危險區域的應用。
PGS100 是ABB的新型表壓變送器，旨在適應具有標準規格但受快速服務動態影響的市場。
其緊湊的不銹鋼外殼提供了堅固性、耐濕性和抗振動性，同時結合了具有背光選項的新型高可見度顯示器。 Easy Set up 功能增強了新型觸摸 HMI 的易用性，這是一種固件選項，可從顯示器本身輕松配置設備參數。
如果應用需要更多，ABB 的獨特技術，如 Diaflex（抗磨損）或 H-Shield（抗氫滲透）會派上用場。
PGS100 提供集成過程連接，可與多種適配器和法蘭結合使用，以確保機械安裝到任何過程點。
ABB壓力變送器PGS100系列其他常用型號：
ABB PGS100.LS9A1APYUHD4E9LTSM5
ABB PGS100.L.S9.H.1.A.C.Y.U.H.D3.E9.BU.CF.LTS
ABB PGS100.R.S9.A.1.A.A.Y.T.H.D3.E9.LTS
ABB PGS100.K.S9.A.1.A.A.Y.T.H.D3.E9.LTS
ABB PGS100.D.S9.A.1.A.A.Y.T.H.D3.E9.LTS
ABB PGS100.K.S9.A.1.A.A.Y.T.A.E9.SC
ABB Temperature Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ABB壓力變送器PGS100.LS9A1APYUHD4E9LTSM5的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ABB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
ABB壓力變送器PGS100.LS9A1APYUHD4E9LTSM5技術參數
